Wooting Two HE
Introduction
This guide will help you get started with your brand new Wooting Two HE. Make sure you read through it without skipping too many steps. You'll be thankful you did so afterwards.
First of all, if you haven't already, join our Discord community! Glory is only as sweet as the people that are there to witness it. Share your experience, enjoyment, and learn from others that also got a Wooting Two HE.
You are hereby invited to join the Wooting Discord server!And if you're digging your set-up, or built a cool custom Wooting, don't be shy and tweet us a sweet picture at @WootingKB.

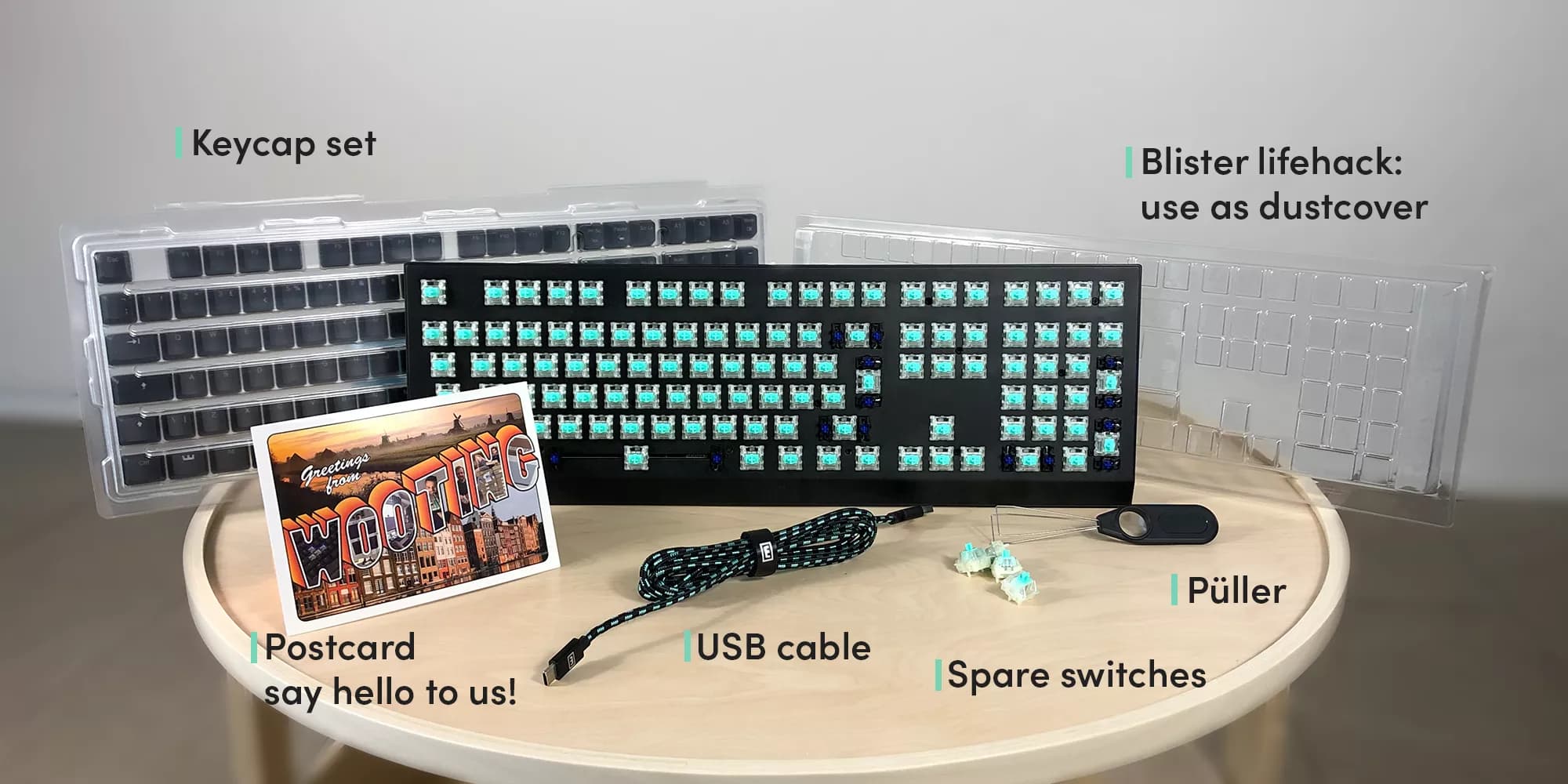

What's inside the box?
Let's first double-check if you've received a complete package. Select your layout to show what should be inside the Wooting Two HE packaging.
1x
Wooting Two HE (ANSI)
1x
Keycap and Switch puller
4x
Spare Lekker L60 Switches
1x
USB-C to USB-A 2.0 cable (2m / 6.6ft)
1x
Postcard
Installing Keycaps
If your Wooting Two HE is an ISO model, it comes without keycaps pre-installed. Don't worry, installing them is simple and a great way to bond with your new keyboard.
Depending on the keycap set you have, installation can be as easy as transferring them straight from the blister tray onto your keyboard. Press each keycap down firmly so it sits snugly on the switch.

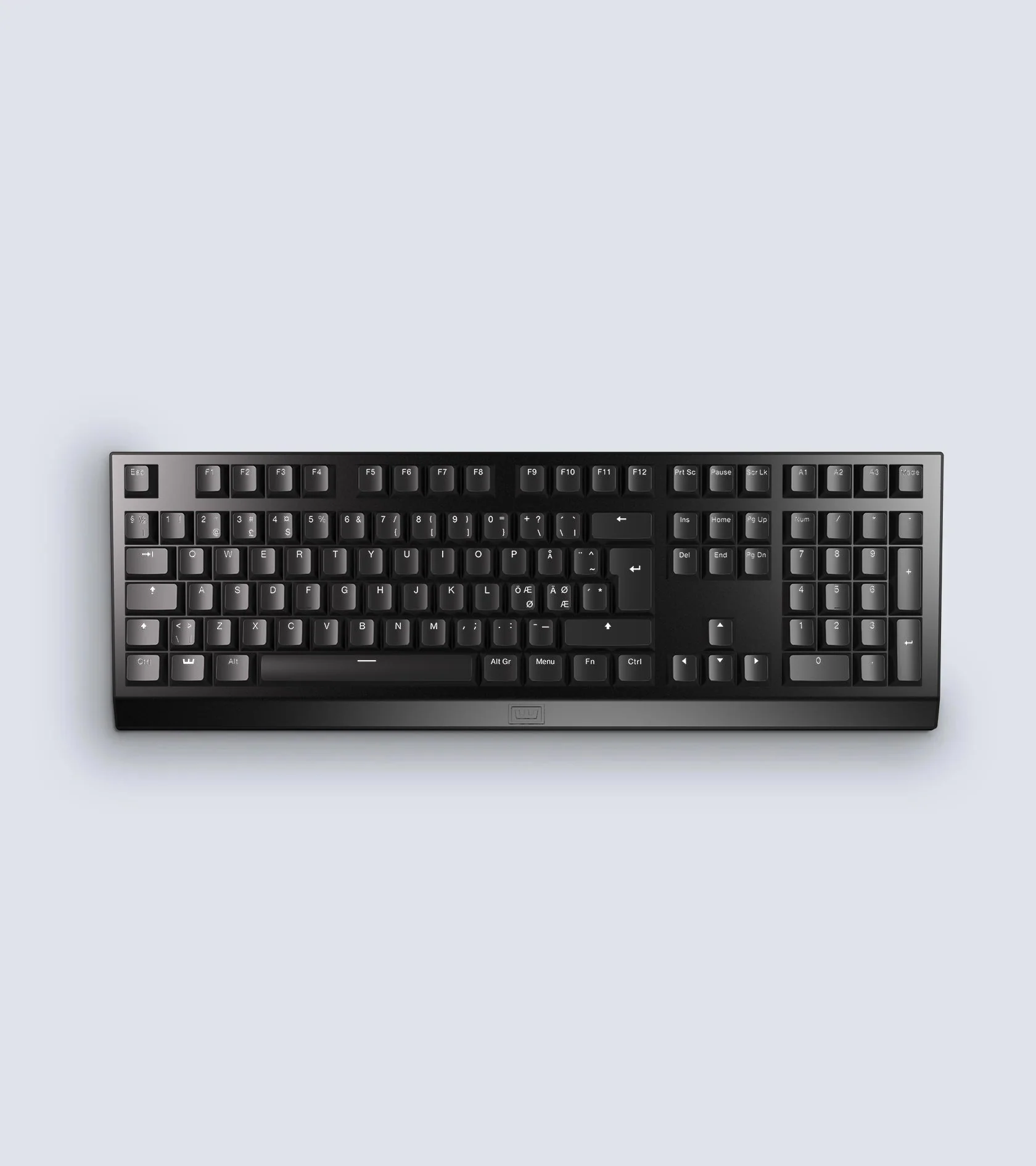

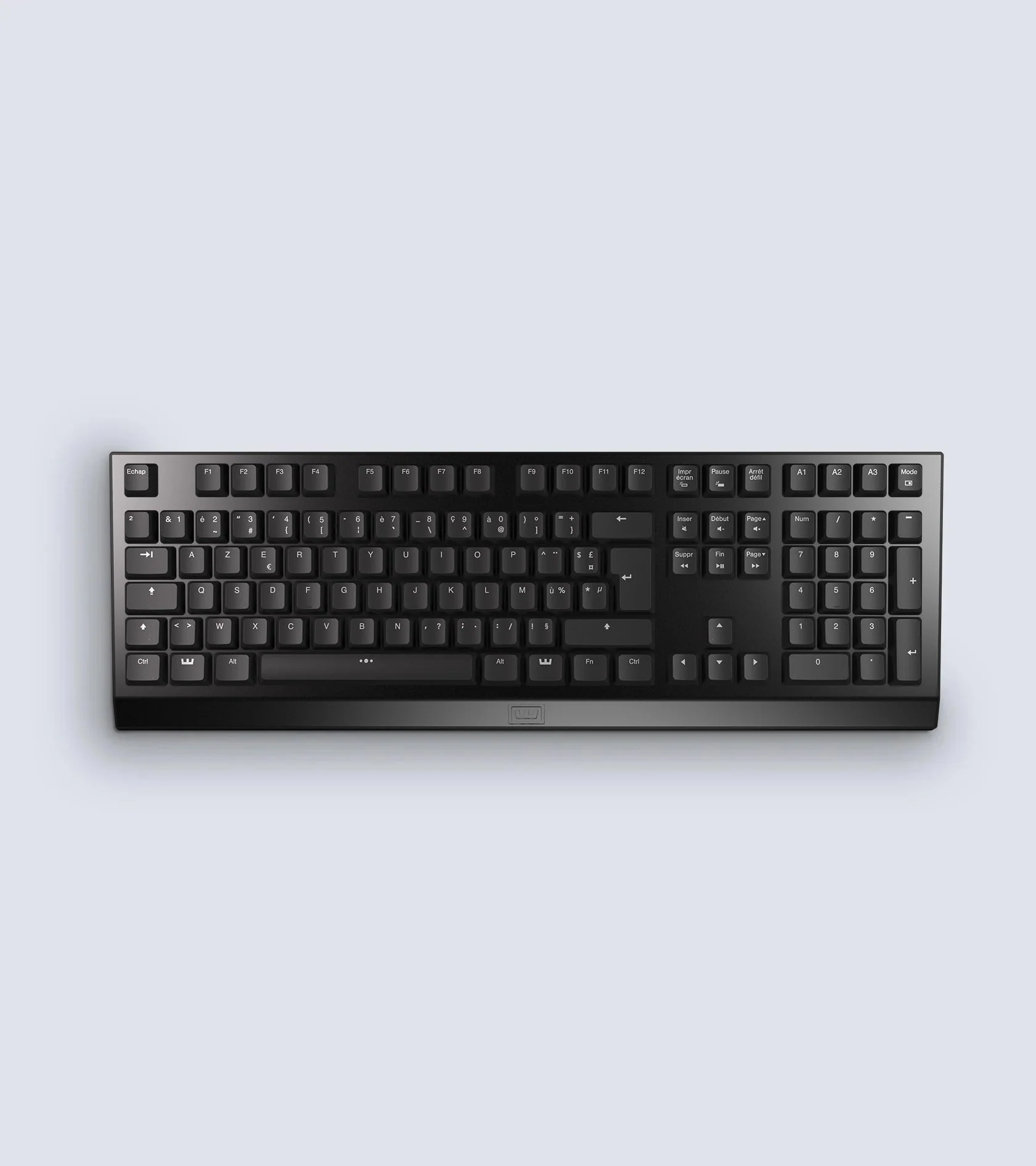

Above, you'll find a visual layout of all available ISO keycap languages for reference. Select the language of your keycaps and get started!

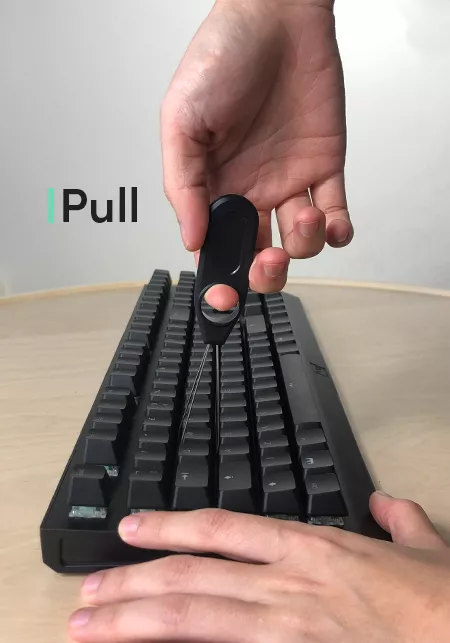

Pulling Keycaps
If you've messed up your keycap placement, need to take the keyboard apart, or you want to install a brand new set of keycaps, it's time to master the art of keycap pulling.
Your Wooting Two HE came with a special 'keycap & switch puller', a tool that functions both as a keycap- and switch puller. Make sure to use the right side of the tool (the side that says 'keycap) and follow the instructions below.
1.

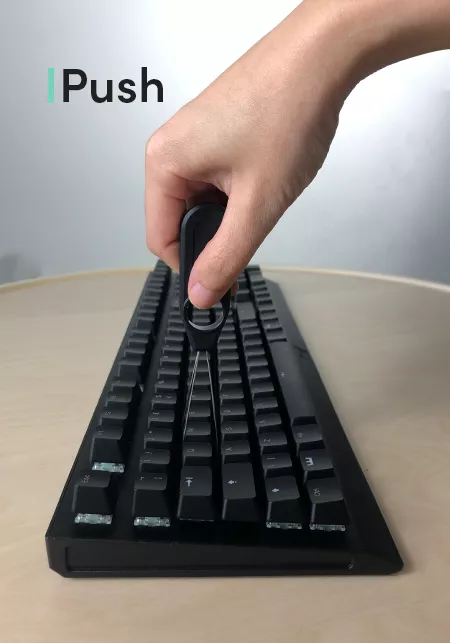

Align the puller over the keycap and push down. Make sure it *clicks* on both sides.
2.
Pull with one hand straight up. With your other hand hold down the keyboard.
3.

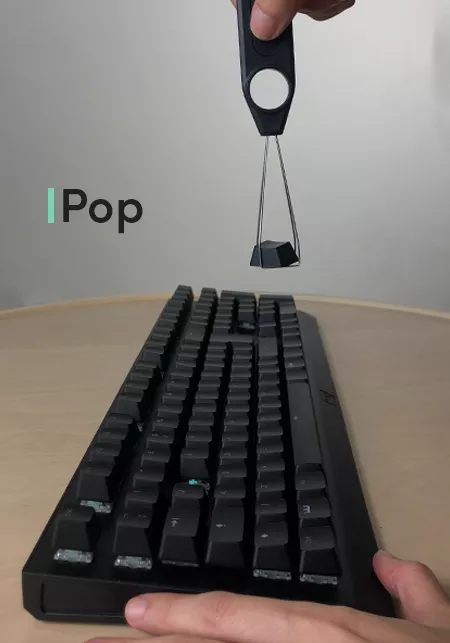

The keycap should pop off of the switch.
The Wootility
Wootility is the software to configure your keyboard with. We have two versions of Wootility.
This version operates in your browser. It's fast, secure and ultra lightweight.
Launch Wootility Web
Compatible with Chrome-based browsers like Chrome, Edge, Arc and Opera.
Pro tip: Update your device!
We constantly improve our firmware and software. Make sure you have the latest and greatest by updating your keyboard straight away.
Go to https://wootility.io and connect your keyboard. Then:
- If a firmware update is available, you'll see a notification automatically. Alternatively, go to Settings → Updates → My Devices, hover over your device, and start the update.
- Issues while updating? This might help: Error during update or restore.
- For software updates, go to Settings → Updates and click 'Check for updates'
Keyboard modes & shortcuts

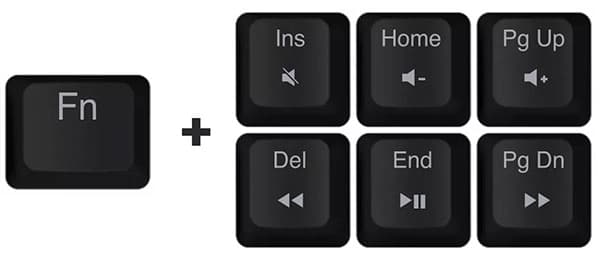

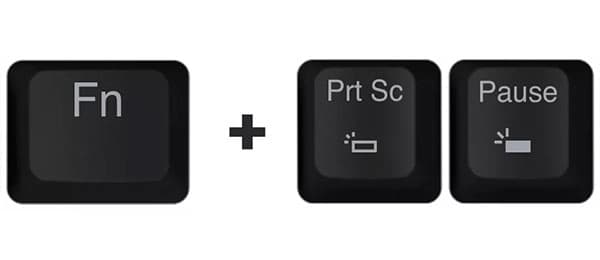

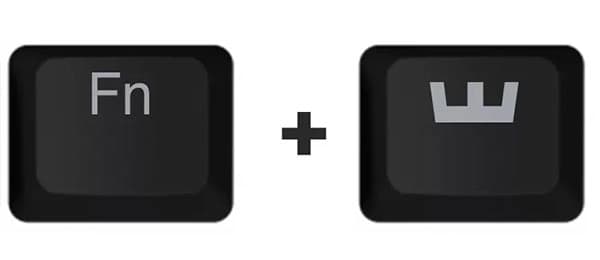

Out of the box, your Wooting Two HE comes with 2 additional function layers that can be accessed using the Fn1 and Fn2 keys.
Below you find the default mapping, but anything can be changed in Wootility. None of the default functions are imprinted on the keycap, so you don't get confused when making your own.

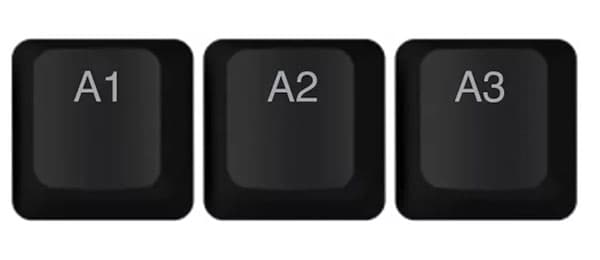

Profiles
Your Wooting Two HE has two default profiles installed on board, a typing profile and a gaming profile (faster actuation and Rapid Trigger enabled).
You can save up to 4 profiles on your keyboard that can be accessed anywhere.
Hold down Fn then press Mode,A1,A2, or A3
*Regardless of the language layout, the location is the same. Text is based on ANSI US English.
Need Help?
You don't need to figure out the world by yourself.
You can get help within the Wooting community on Discord or help others. Or reach us directly using our Support Wizard.
