Wooting 80HE+ Module

Introduction

Welcome to the Wooting family, and congratulations on your new Wooting 80HE+ Module.

This guide will help you get ready to start playing. It only takes a few minutes, and it’s worth reading from start to finish.

Need help, want to share your setup, or just chat with other Wooting owners? Join our Discord community, where you’ll find fellow enthusiasts, helpful guides, and the latest updates.

You are hereby invited to join the Wooting Discord server!

And if you're digging your set-up, or built a cool custom Wooting, don't be shy and tweet us a sweet picture at @WootingKB.

What's inside the box?

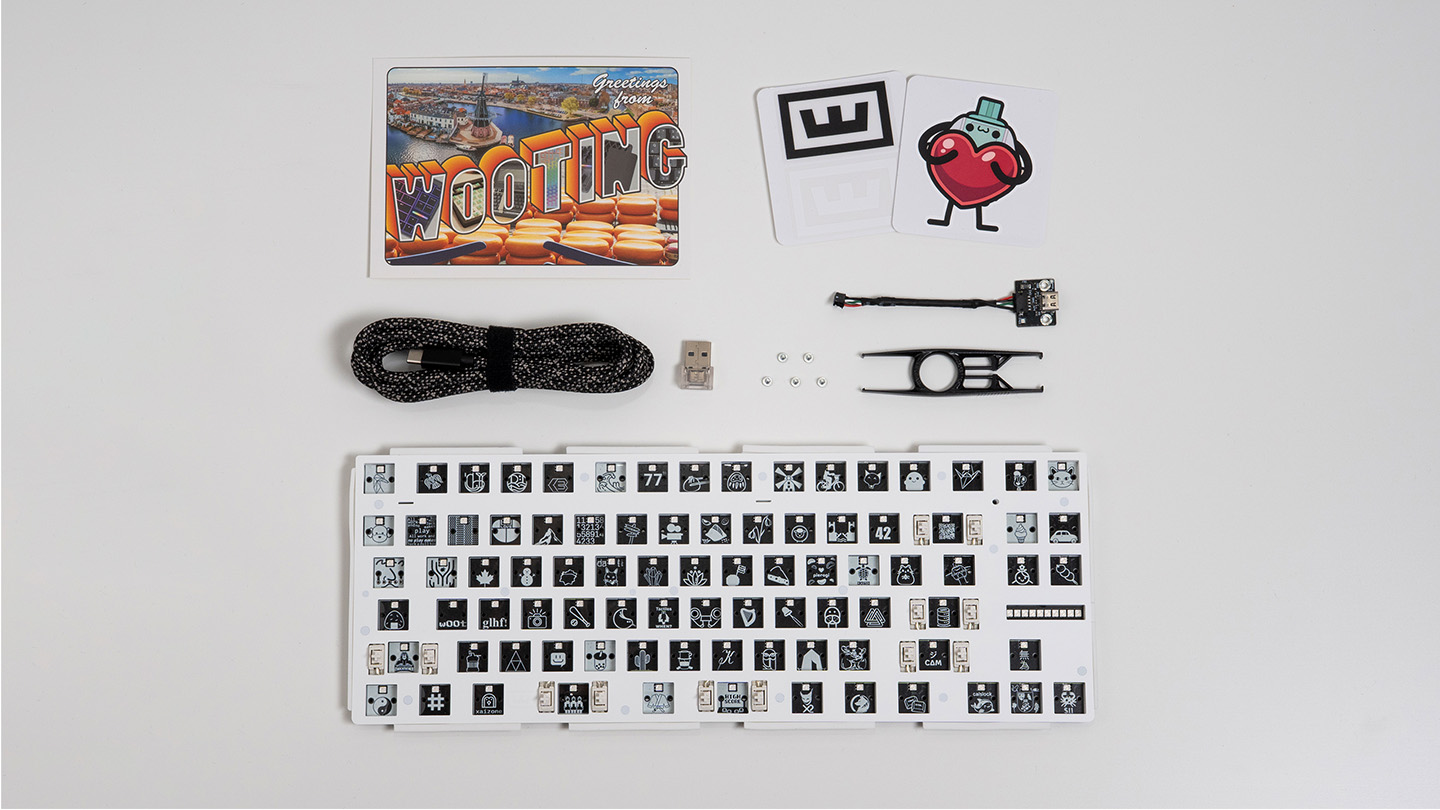

Let's double-check if you've received the complete Wooting 80HE+ Module package.

Mounting the Module

Follow the video below to install your Module into its case. If you’re using a third-party case, installation may differ, so be sure to follow the instructions provided with your case.

Installing Keycaps

Depending on the keycap set you have, installation can be as easy as transferring them straight from the blister tray onto your keyboard. Press each keycap down firmly so it sits snugly on the switch.

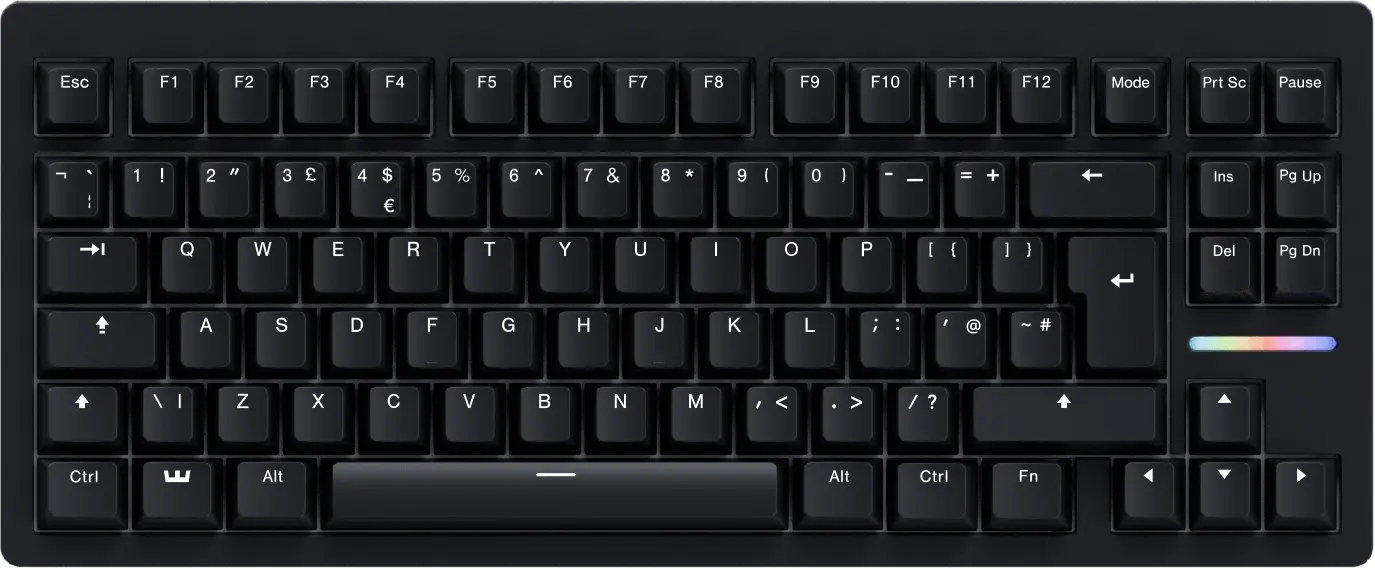

Below is a visual overview of the ANSI layout and all available ISO keycap languages. Choose the language that matches your keycaps.

Select your keycap language below to see an example image of where each keycap goes.

United KingdomUnited KingdomGermanGermanNordicNordicFrenchFrenchSpanishSpanishUS-ANSIUS-ANSI

Pulling Keycaps

If you've messed up your keycap placement, need to pull out the PCBA, or want to install a brand new set of keycaps, it's time to master the art of keycap pulling.

Your Wooting 80HE+ Module came with a keycap & switch puller. As the name suggests, it pulls both keycaps and switches. For now, use the side that says K*eycap* and follow the instructions below.

01

Position the keycap puller

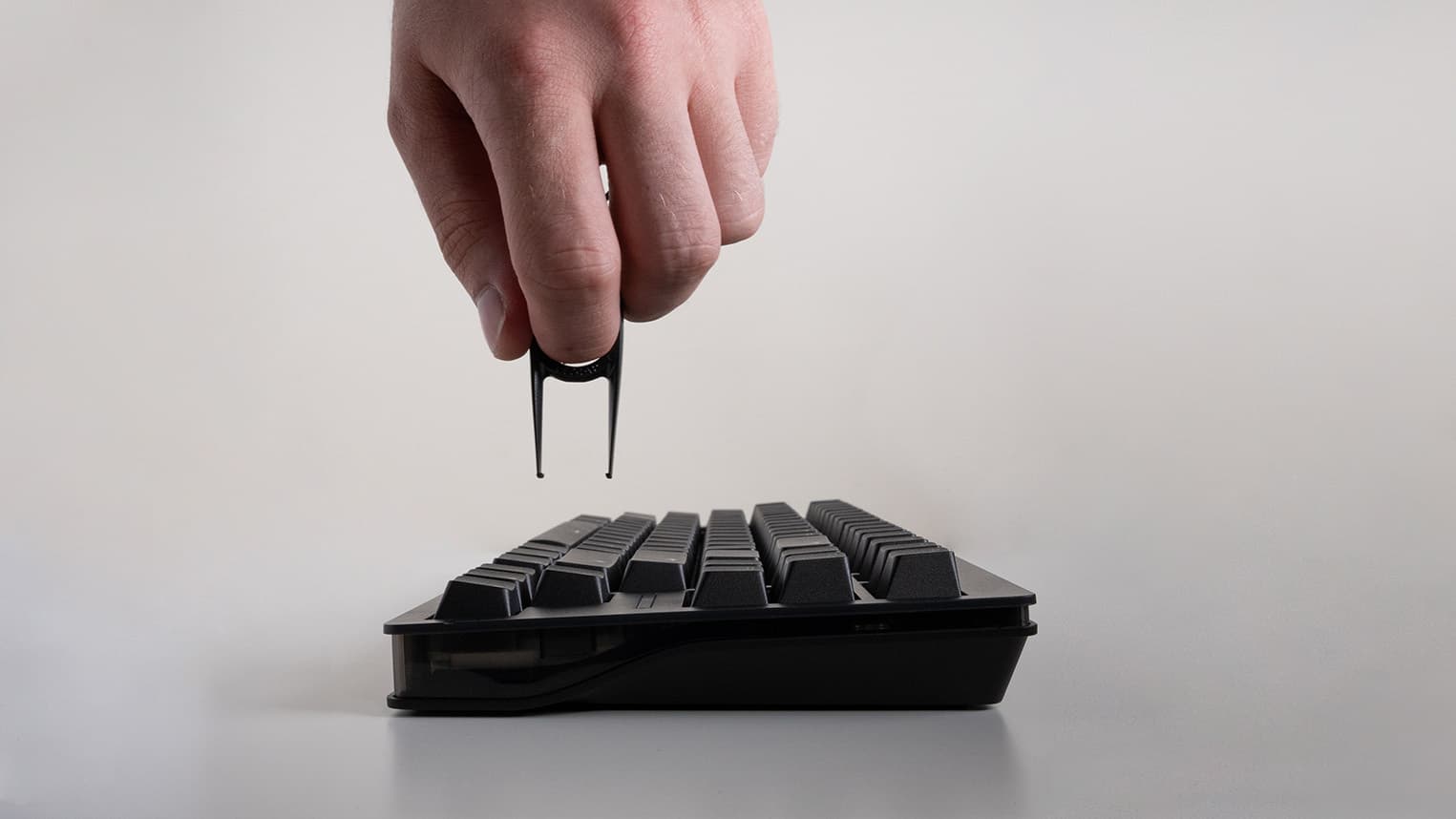

Align the puller over the keycap and push down. Make sure it clicks on both sides.

02

Pull the keycap straight up

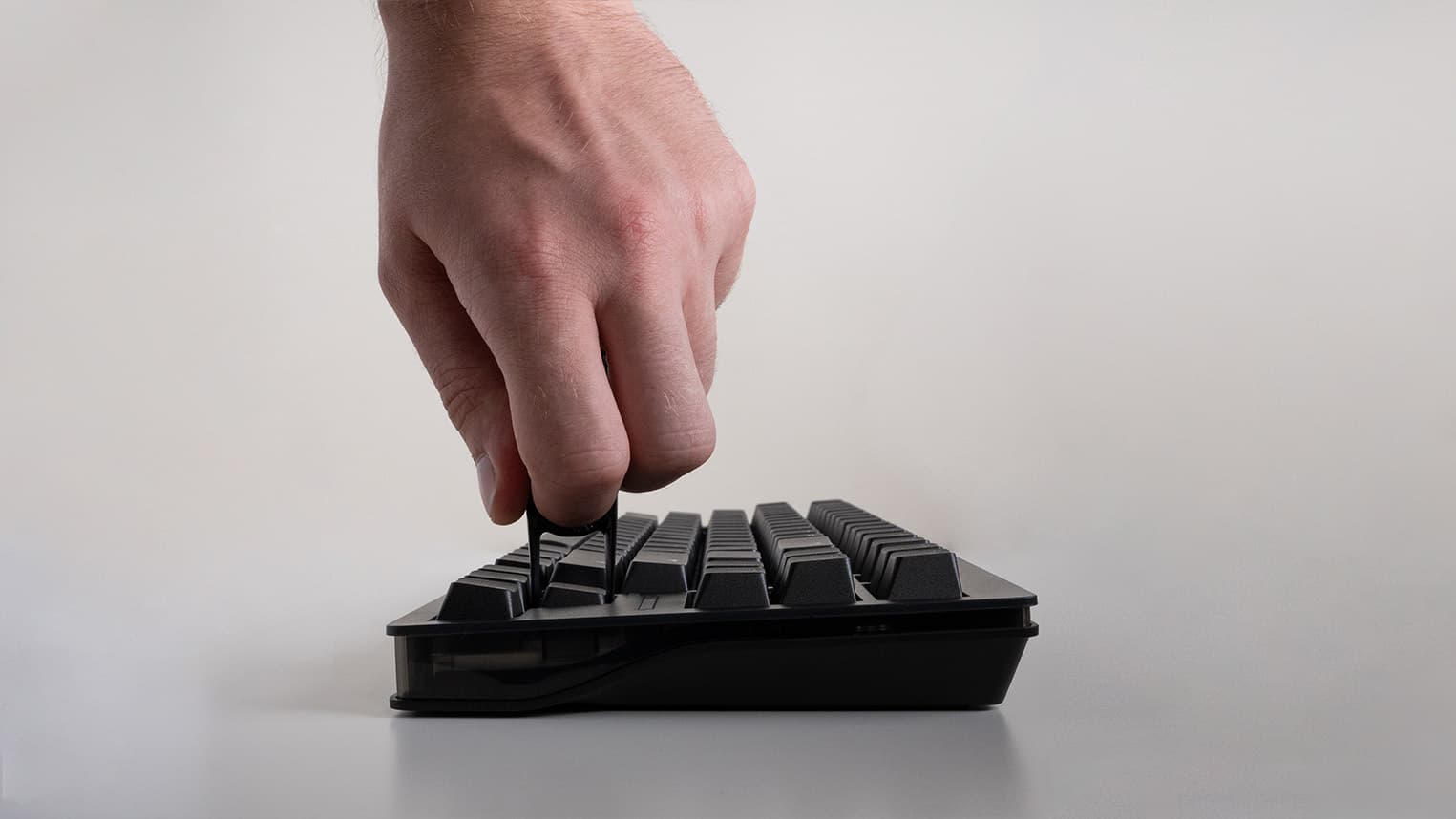

Pull with one hand straight up. With your other hand hold down the keyboard.

03

Pop the keycap off

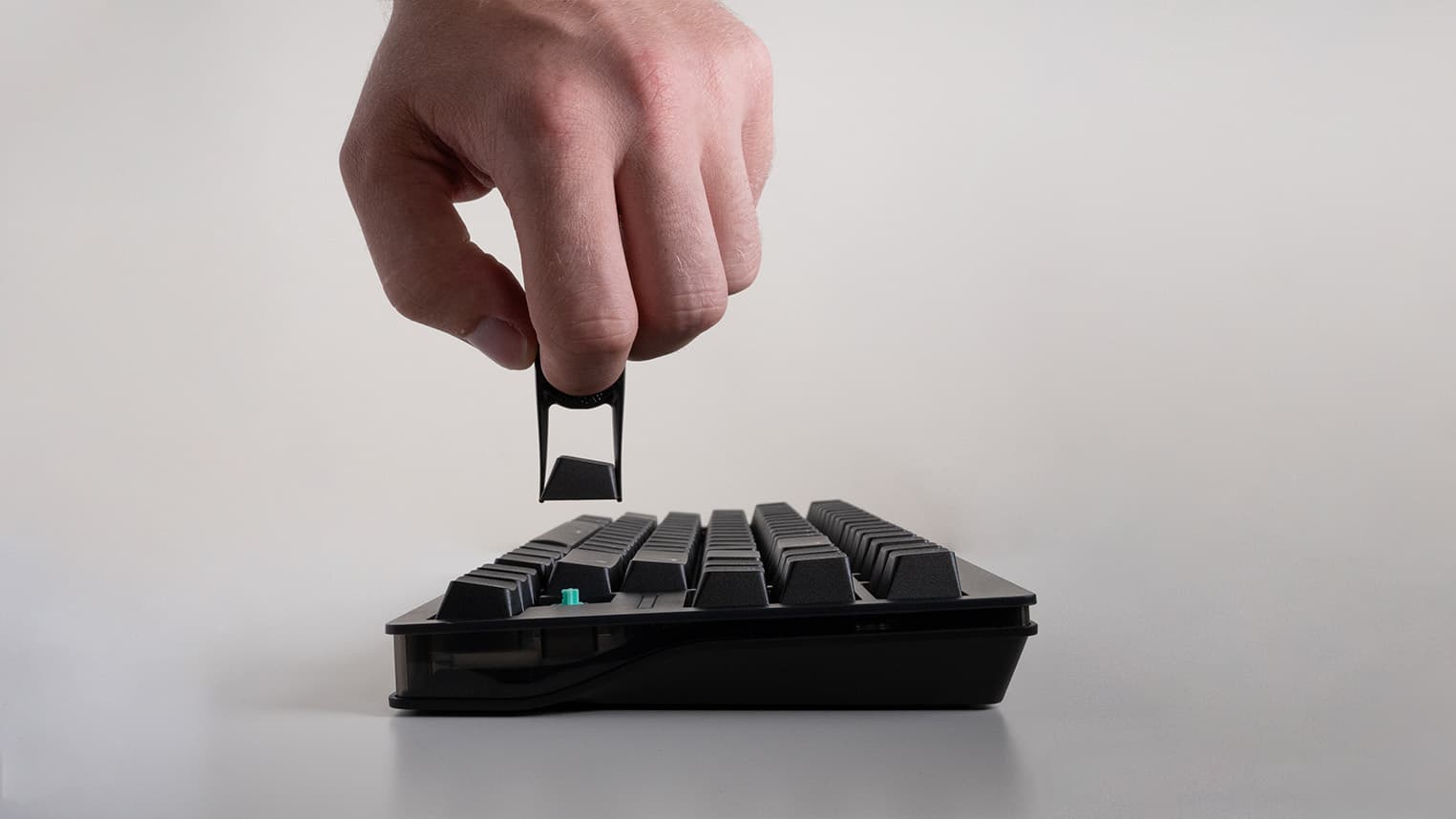

The keycap should pop off of the switch.

Pulling Switches

Want to install new switches? Grab the 'keycap & switch puller' that came with your keyboard. This time use the side of the tool that says Switch.

01

Grip the switch

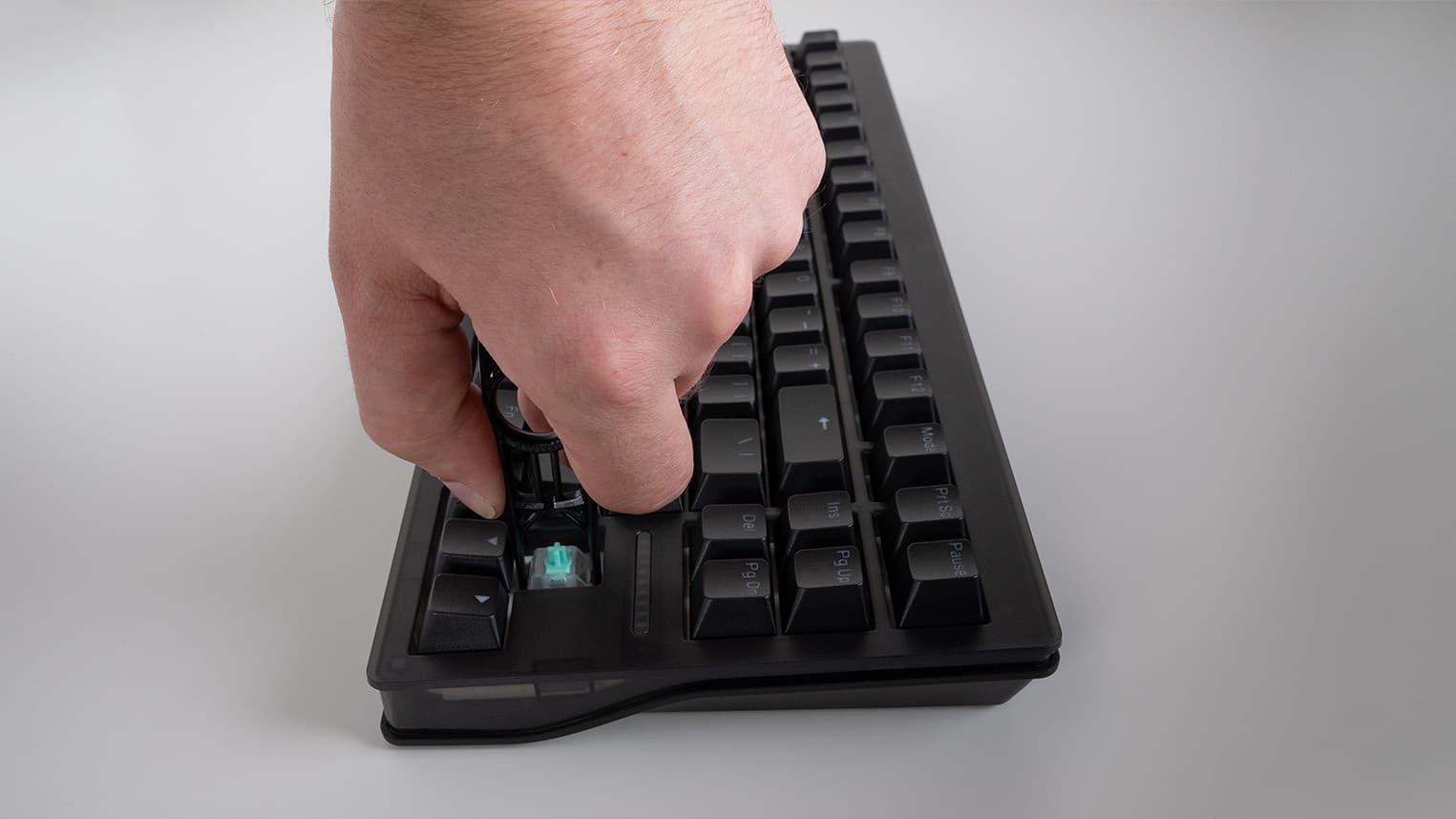

Hook the puller onto the top (north) and bottom (south) of the switch.

02

Squeeze and wiggle

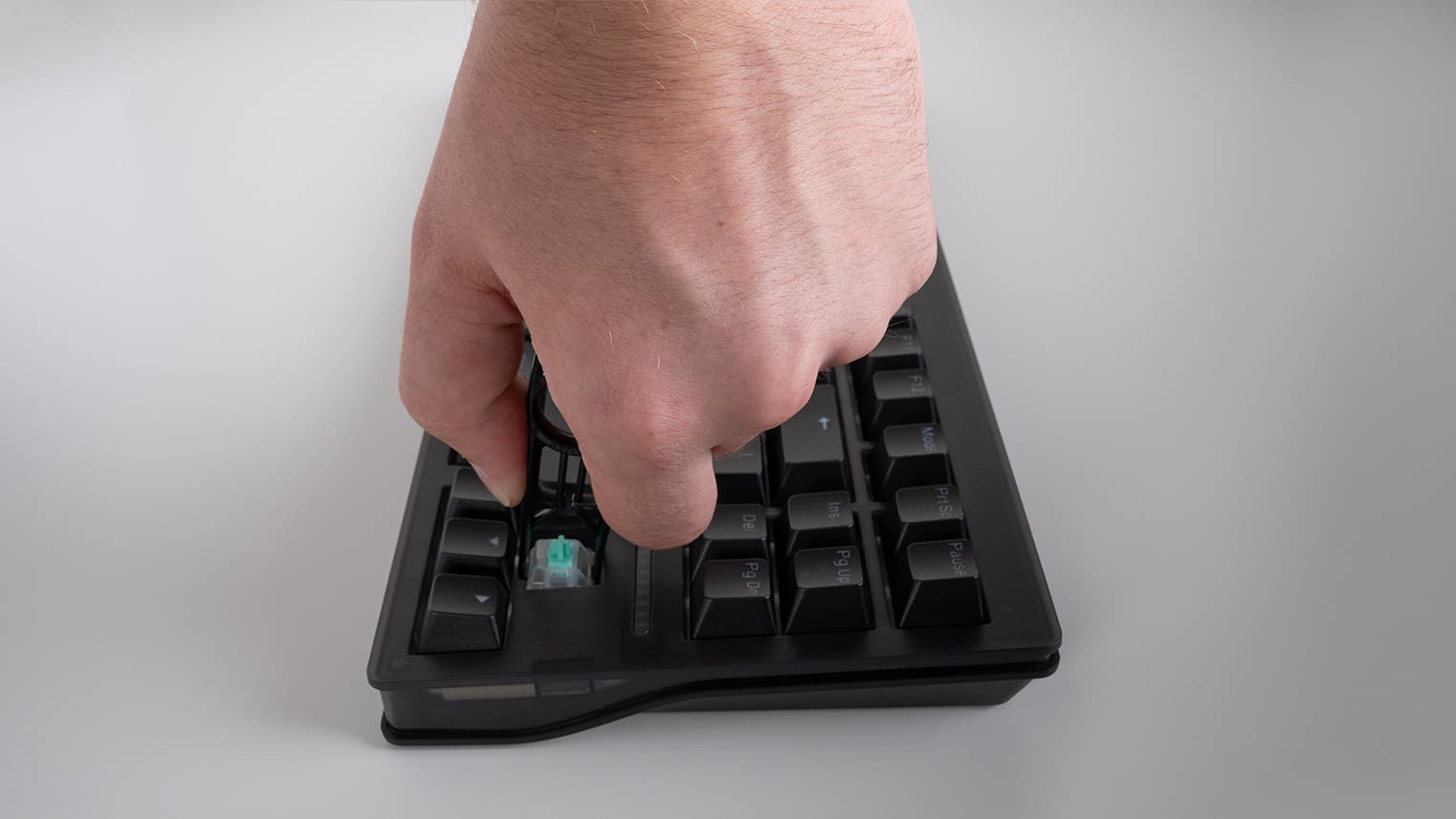

Gently squeeze the puller and wiggle the switch until it comes loose.

03

Lift the switch out

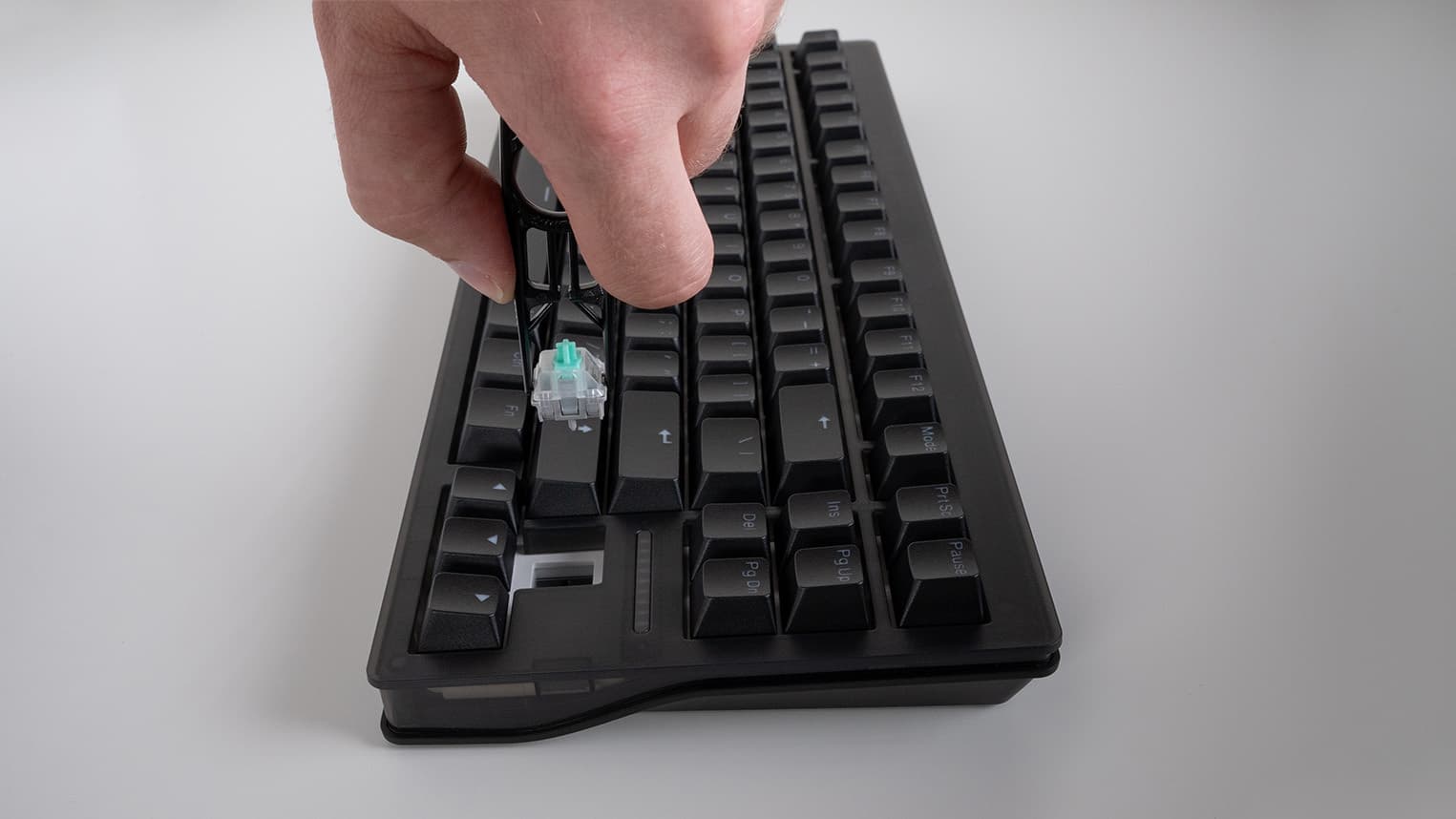

Pull the switch straight up and out of the socket.

Keyboard modes & shortcuts

So you've got your new 80HE+, and you're ready to start typing. But before you do, you want to know the keyboard's default key mappings and shortcuts. We've got you covered.

Out of the box, your Wooting 80HE+ comes with 2 additional function layers that can be accessed using the Fn1 and Fn2 keys.

Below you find the default mapping, but anything can be changed in Wootility. None of the default functions are imprinted on the keycap, so you don't get confused when making your own.

Make sure to select the correct layout of your keyboard.

Regular SpacebarRegular SpacebarSplit SpacebarSplit Spacebar

ProfilesProfilesMedia KeysMedia KeysLED BrightnessLED BrightnessDisable Windows-keyDisable Windows-keyFN OverviewFN Overview

Your Wooting 80HE+ has two default profiles installed on board, a typing profile and a gaming profile (faster actuation and Rapid Trigger enabled).

You can save up to 4 profiles on your keyboard that can be accessed anywhere.

To switch to a specific Wootility profile

Hold down Fn then press 1, 2, 3, or 4

Regardless of the language layout, the location is the same. Text is based on ANSI US English.

Wootility

Wootility is the software to configure your keyboard with. We have two versions of Wootility. A lightweight web version and a downloadable app. Whichever you choose, you don't need to have the Wootility running after configuring your keyboard.

Launch Wootility Web

Go to download page

Pro tip: Update your device!

We constantly improve our firmware and software. Make sure you have the latest and greatest by updating your keyboard straight away.

Go to https://wootility.io and connect your keyboard. Then:

• If a firmware update is available, you'll see a notification automatically. Alternatively, go to Settings → Updates → My Devices, hover over your device, and start the update.
• Issues while updating? This might help: Error during update or restore.
• For software updates, go to Settings → Updates and click 'Check for updates'
