Wooting 60HE v2 Aluminium Case
Introduction
This guide will help you get started with your brand new Wooting 60HE v2 Aluminium Case. Make sure you read through it without skipping too many steps. You'll be thankful you did so afterwards.
First of all, if you haven't already, join our Discord community! Glory is only as sweet as the people that are there to witness it. Share your experience, enjoyment, and learn from others that also got a Wooting 60HE v2 Aluminium Case.
You are hereby invited to join the Wooting Discord server!And if you're digging your set-up, or built a cool custom Wooting, don't be shy and tweet us a sweet picture at @Wootingkb.

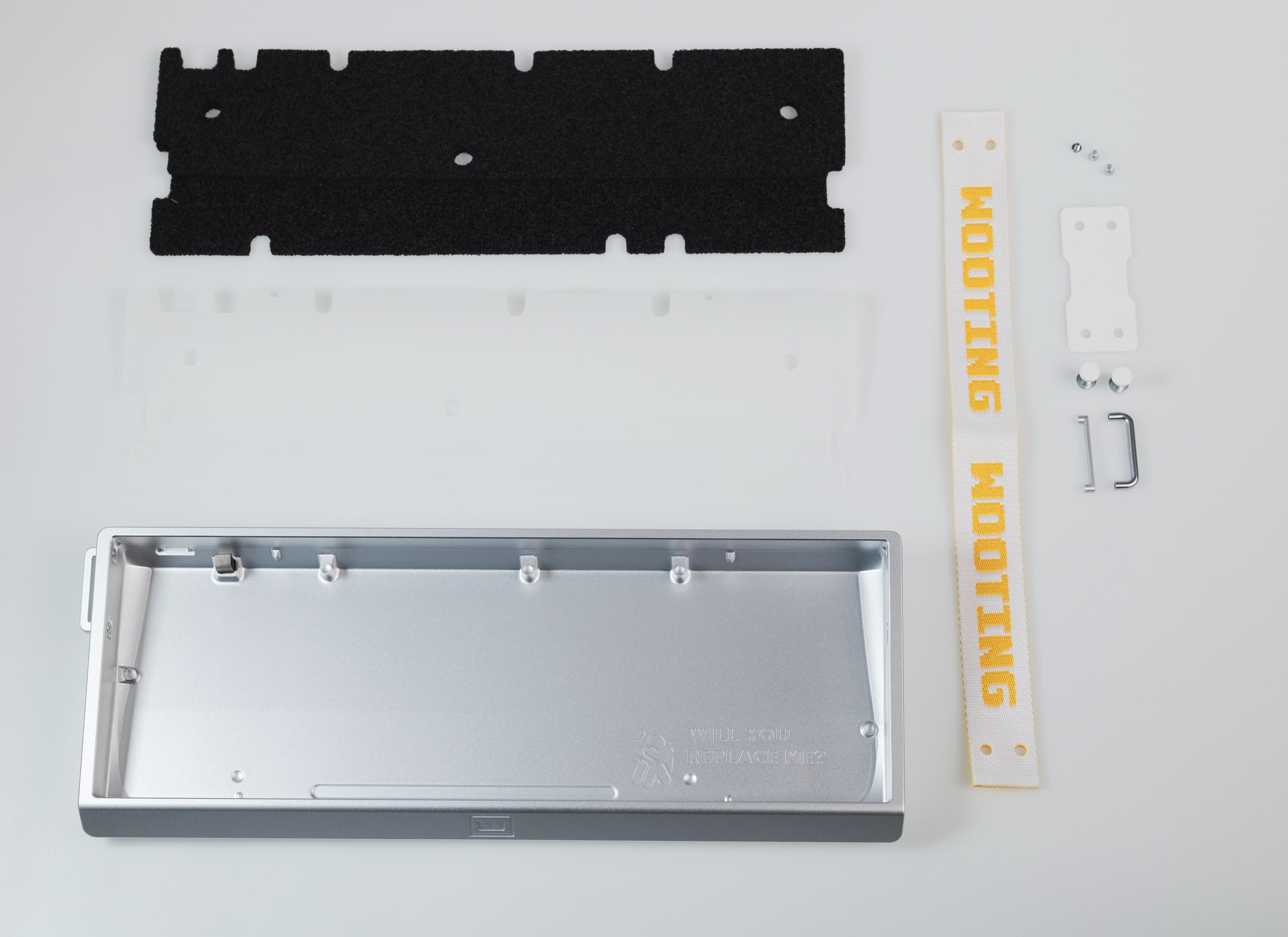

What's inside the box?
Let's first double-check if you've received a complete Wooting 60HE v2 Aluminium Case package.
1x
Wooting 60HE v2 Aluminium Case
1x
Wooting strap
1x
Silicone strap attachment piece
2x
Strap binding post screws
1x
Decorative 'no strap' piece
1x
Strap attachment piece (stainless steel)
3x
Case strap attachment screws (M2x3mm)
1x
Silicone dampening layer
1x
EPDM Foam dampening layer
Installing a PCBA
If you’re using the Wooting 60HE v2 PCBA, make sure the friction fit pad is installed (it should be if you just unpacked it). If it is, pop it into the case by first laying in the north side of the PCBA and gently pressing the rest of it into the case.

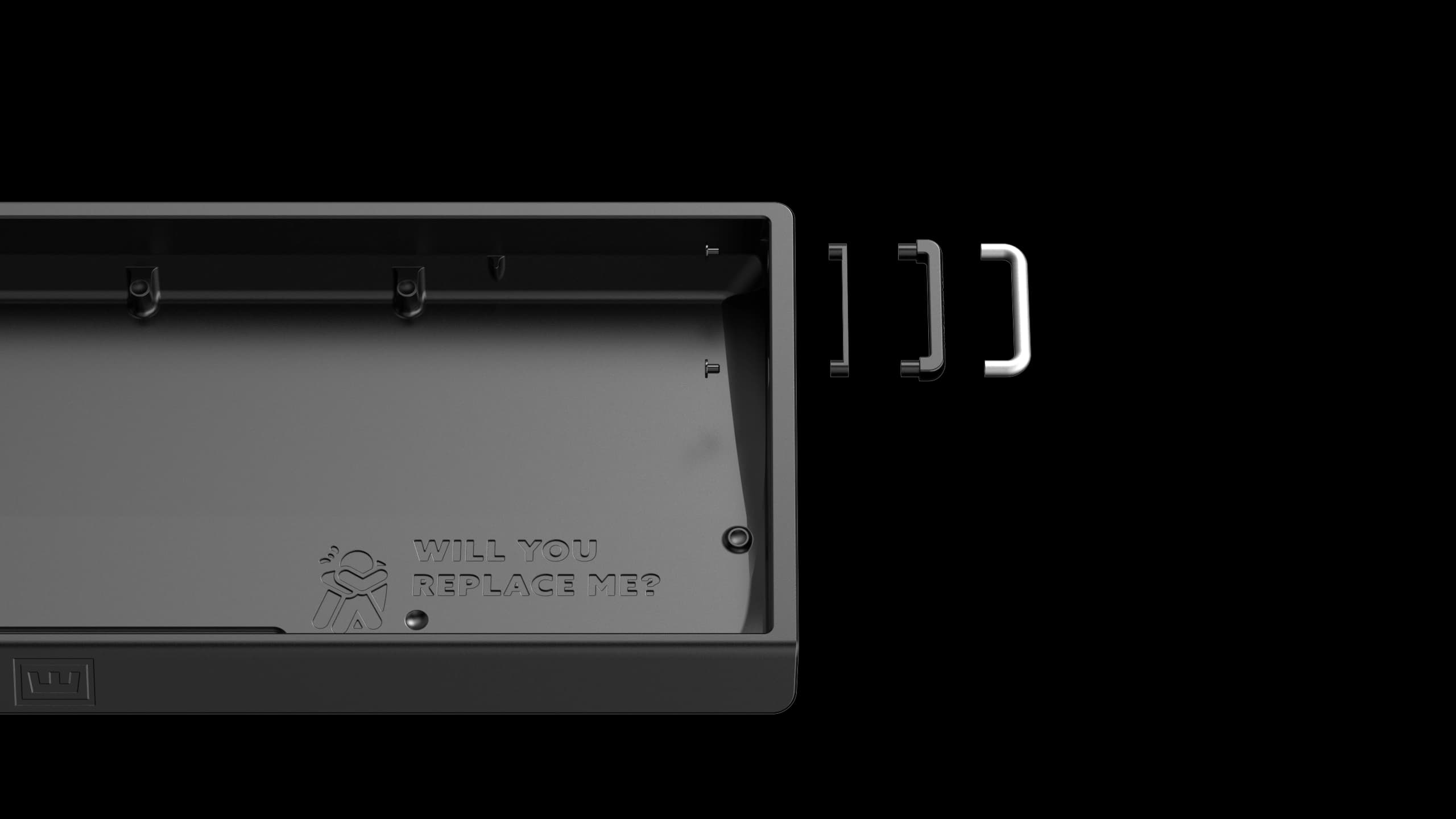

Strap/no-strap mounts
Your Wooting 60HE v2 Aluminium Case has a ‘strap mount piece’ installed by default, you can however swap out the basic strap mount piece and replace it with the ‘stainless steel’ option, or the no-strap option if you don’t like our beloved strap. Use a PH1 screwdriver to remove the screws from the inside of the case and then take the mount off.

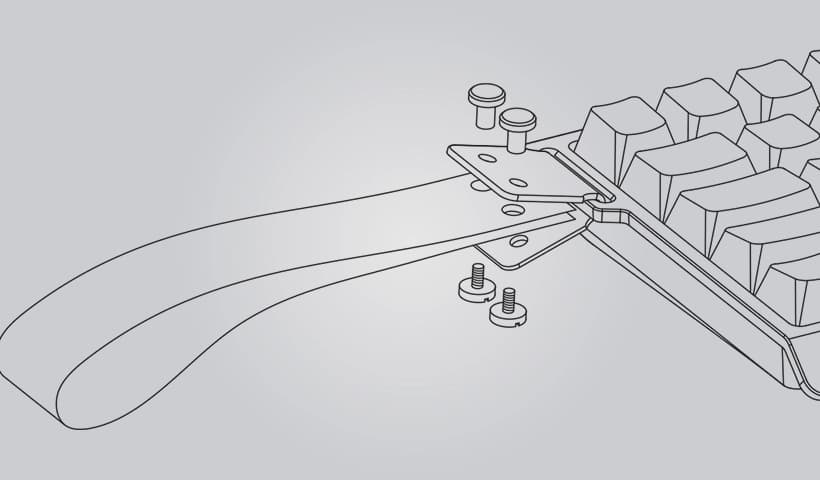

Strap assembly
Let’s make your 60HE v2 stand out. Assemble the Wooting strap onto the clip using the silicone attachment.
- Pull the silicone attachment through the clip hole located on the left top side of your 60HE v2 (by default).
- Fold the Wooting strap in half and align the screw holes. Then align the folded strap with one side of the silicone attachment's screw holes.
- Push the female (binding post) screw through the aligned holes, covering 3/4 layers. Add the last layer to the female screw and squeeze it together as a strap sandwich. Now you can screw and tighten the male screw.
- Repeat step 3 for the second binding post screw.

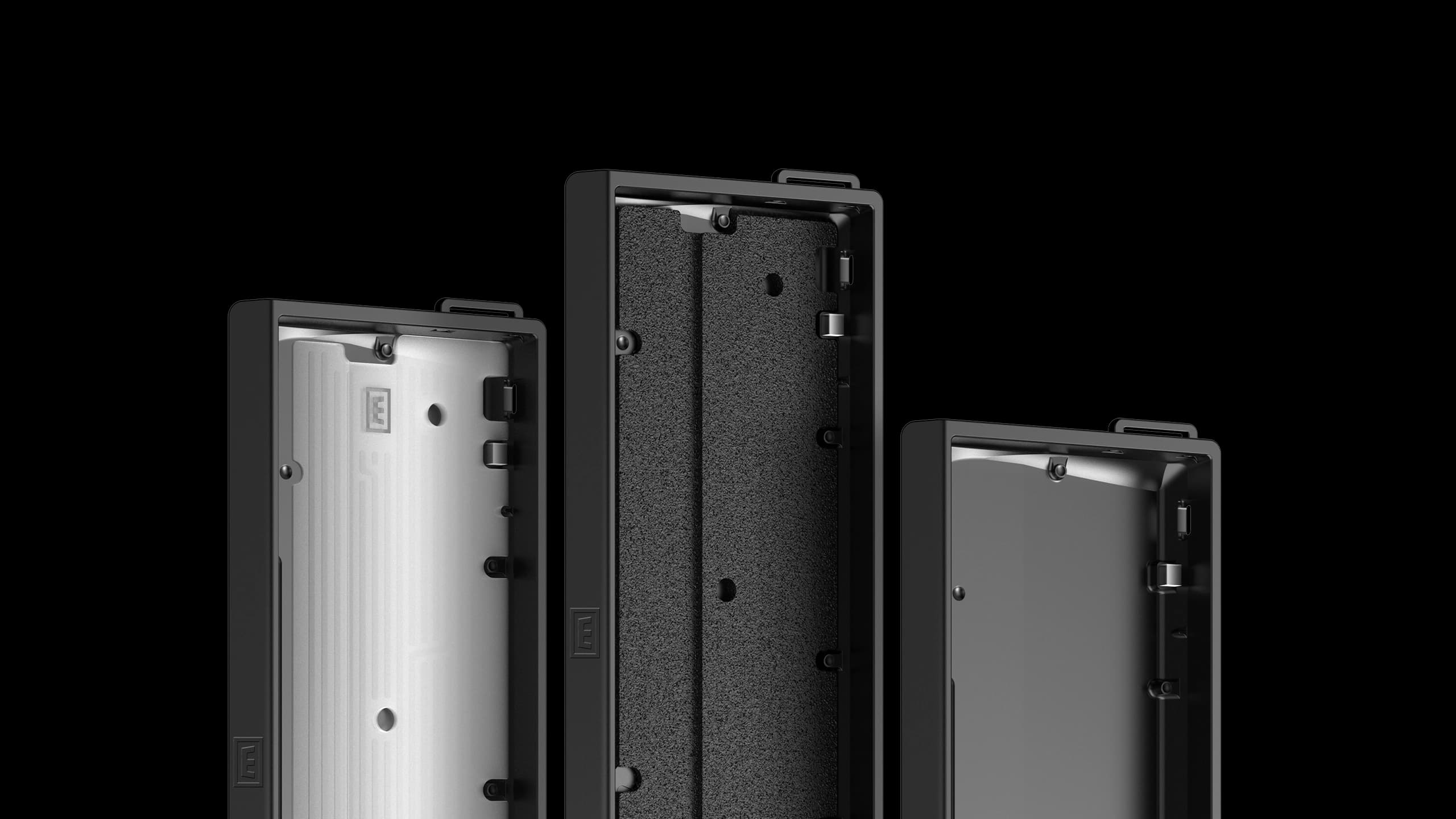

Bottom case dampening
Your Wooting 60HE v2 Aluminium Case has a silicone dampening layer inside by default, but we also added an EPDM foam layer. You can swap out the silicone for the EPDM foam, or leave the case empty, to change your keyboard’s sound profile.
Silicone Block
The clackier and sharper option (pre-installed)

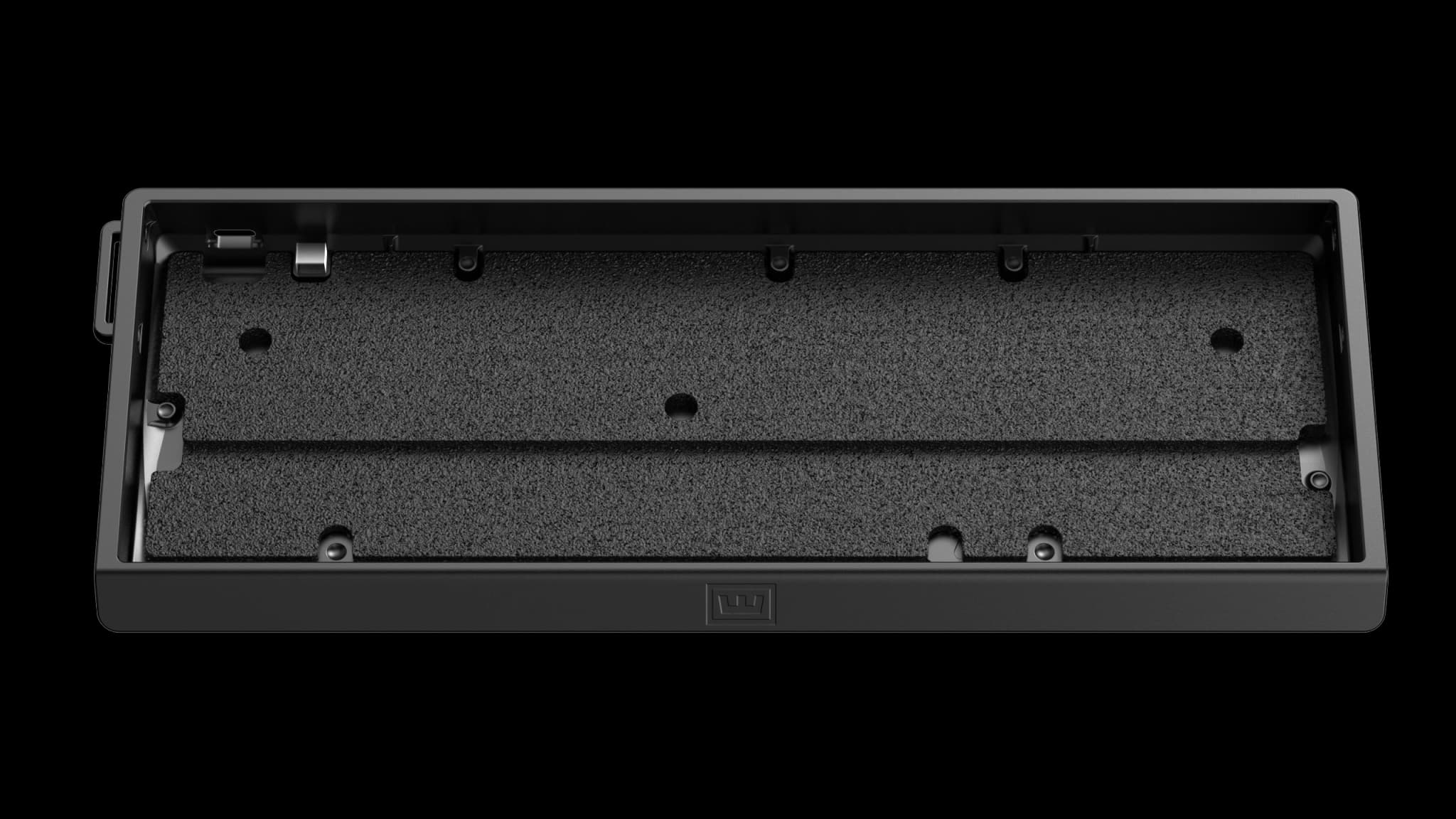

EPDM Foam
The slightly thockier, deeper option.

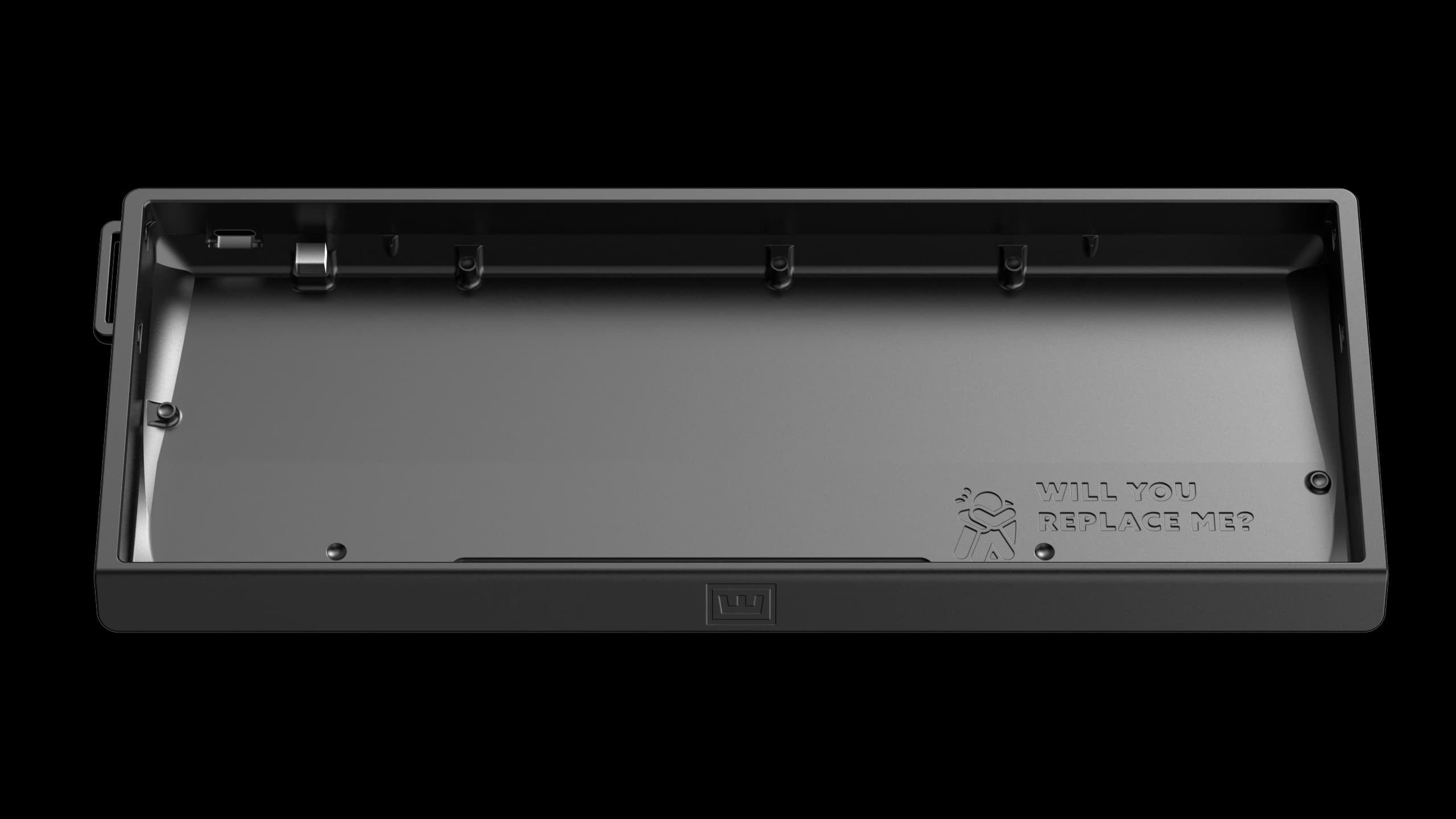

No case dampening
If you prefer to hear the resonance of your case.
