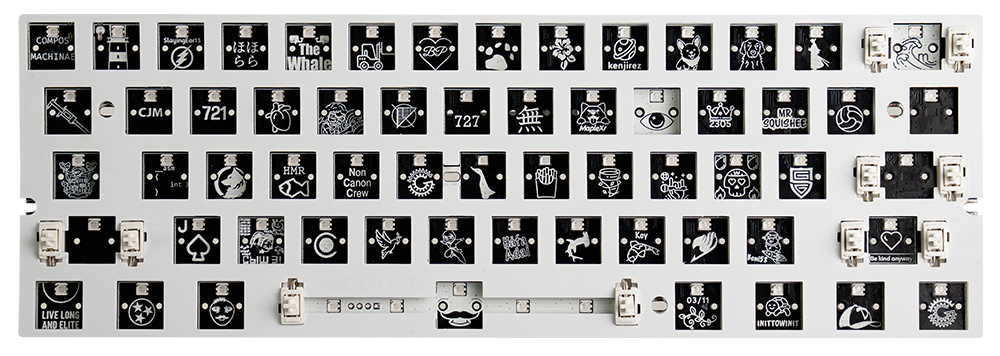

60HE+ Module
No keycaps, No switches, No case, PC plate, Silicone/Poron pad, and an updated PCBA with screw-in stabilizers. This is the 60HE+ Module. Order it individually or with optional switches, keycaps, and a case to build your ultimate 60HE.
Order now60HE+

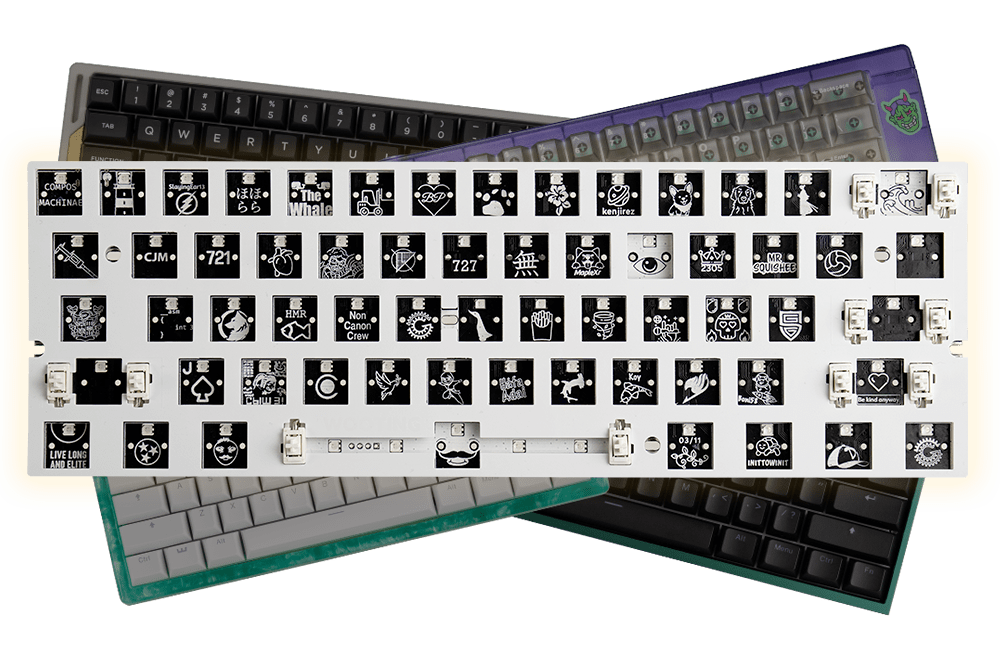

Universal 60% size
You can install the 60HE+ Module in the Wooting Alumaze60, the stock 60HE case, or many third party (aluminum) cases with tray mount or friction fit. You can even make your own case or use no case at all.
Analog Input Unleashed
Full range switch motion.
The Wooting 60HE+ Module detects full switch motion with 0.1mm accuracy from start to end. Every single key outputs an analog signal that can be used for numerous features that enhances your typing and gaming experience.
There is no compromise to be made in what a regular ol’ keyboard might have to offer. Welcome to the future.
Adjustable Actuation
A pretty "sensitive" subject.
Eliminate the slowest element in input latency; the initial key press travel before key activation. You have full control over your actuation point from 0.1 to 4.0mm.
Configurable per key in 0.1mm steps, you can customize each key towards your playstyle.
Rapid Trigger
Unmatched performance.
Eliminate the second slowest element in input latency; return key press travel before key deactivation. Rapid Trigger dynamically changes the actuation and deactivation point. Your keys will activate when you intend to press them and deactivate when you intend to let go.
You can repeat a key press mid motion without needing to surpass a fixed reset or actuation point for rapid presses.
Rappy Snappy
We first brought you Rapid Trigger, now we bring you Rappy Snappy pat. pending.
Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release. When both are active at the same depth, it'll resort to your selected SOCD resolution. This enhances your (counter) strafing, bunny hopping, and block/parry/combo timing in various games.
Built for performance
You need the fastest possible input delivered consistently without fail. Not just eye-blinding RGB and dissuasive promises. This is how we deliver you the fastest possible input.
Programmed for the fastest input

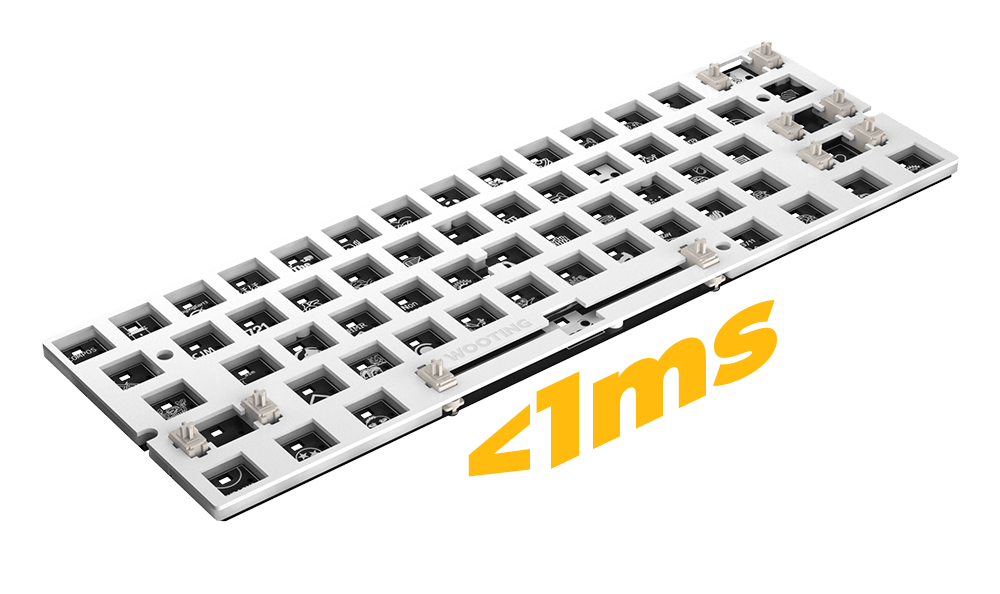

We built the keyboard firmware from the ground up, optimized for input speed. Turn on Tachyon mode to prioritize keyboard scanning over useless RGB effects. The 60HE+ will update every analog key position in less than 1ms, every 1ms.
Engineered without compromises
Traditional keyboards adhere to cost saving matrix scanning and hide the negative impact on input speed using dissuasive marketing. The Wooting 60HE reads the individual keys and parallel scans them for the lowest possible latency.
.png)
PC plate with screw-in stabilizers
The 60HE+ comes pre-installed with screw-in stabilizers to eliminate rattle and a PC switch plate for a softer feel and vibrant sound. You won’t need to go through an upgrade path, it’s already all here.
Sandwich pads

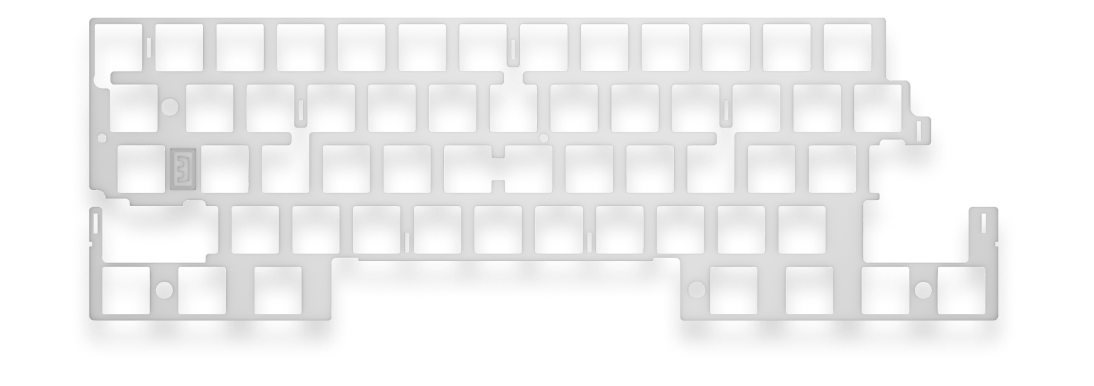

The Module is pre-installed with the Silicone sandwich pad that sits between the switch plate and PCBA. You can optionally exchange it for the provided Poron pad.
.png)

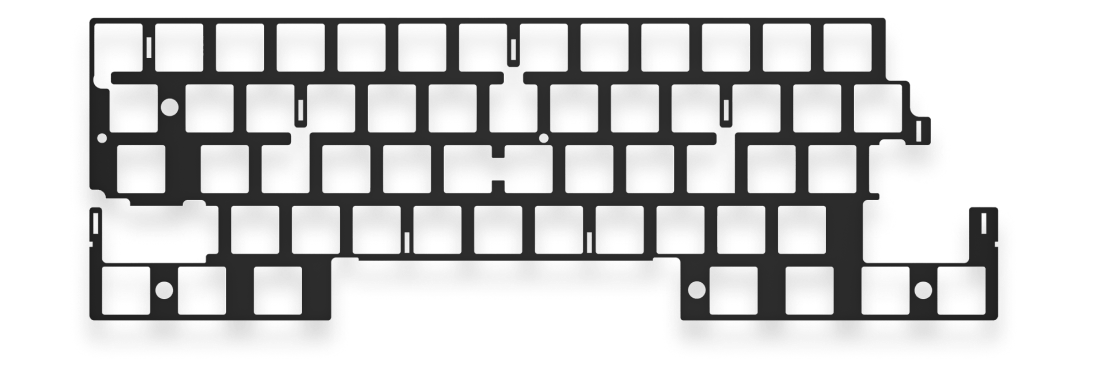

The Poron sandwich pad dampens high-frequency clacking noises, enhancing the keyboard's low-frequency “thock” sounds.
.png)
The Silicone sandwich pad dampens a broad range of frequencies, reducing overall volume, and emphasizing the remaining crisp “clacking” sounds.
Modify it to your liking
Explore a few of our 60HE+ Module modifications using different (third party) cases, keycaps, and switches. You ready to build you own?

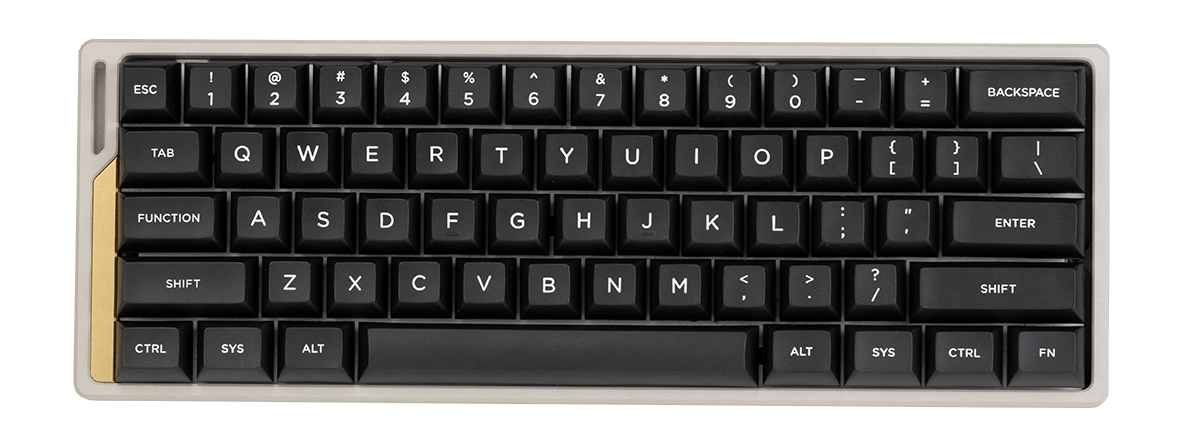

Alumazing
60HE+ Module
Wooting alumaze60 MOA
L factory lubed
Cherry style dye sub

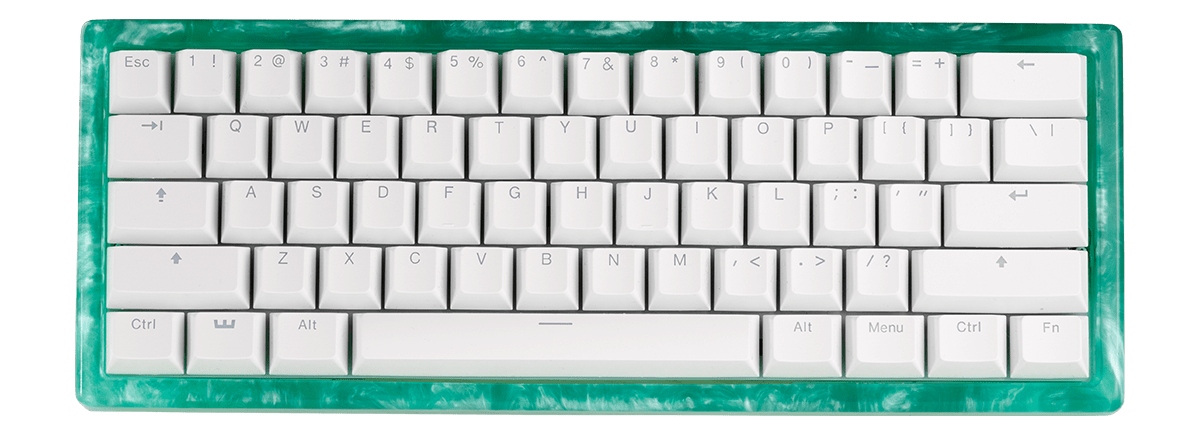

Ocean jade
60HE+ Module
KBDfans resin jade
L60 factory lubed
Wooting PBT just white

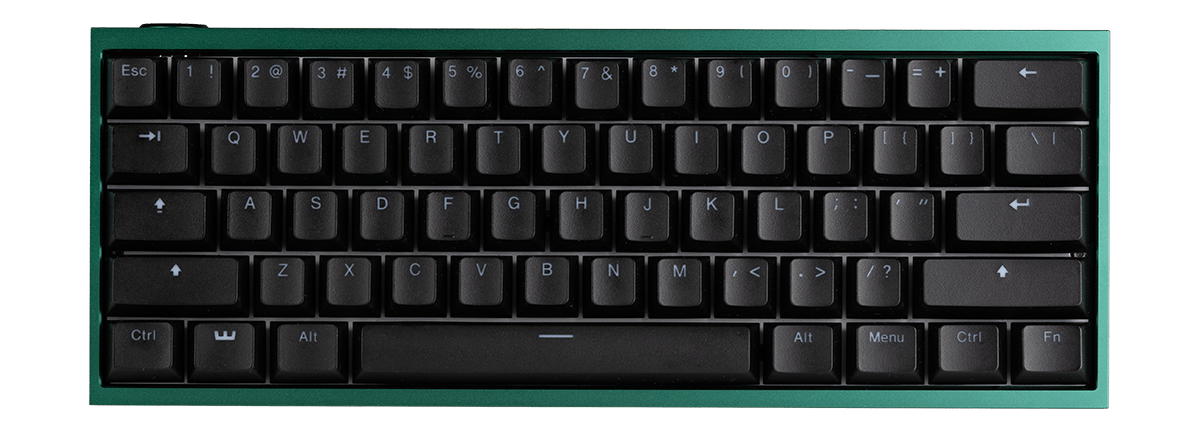

Love tofu
60HE+ Module
KBDfans tofu redux
L45 factory lubed
Wooting PBT just black

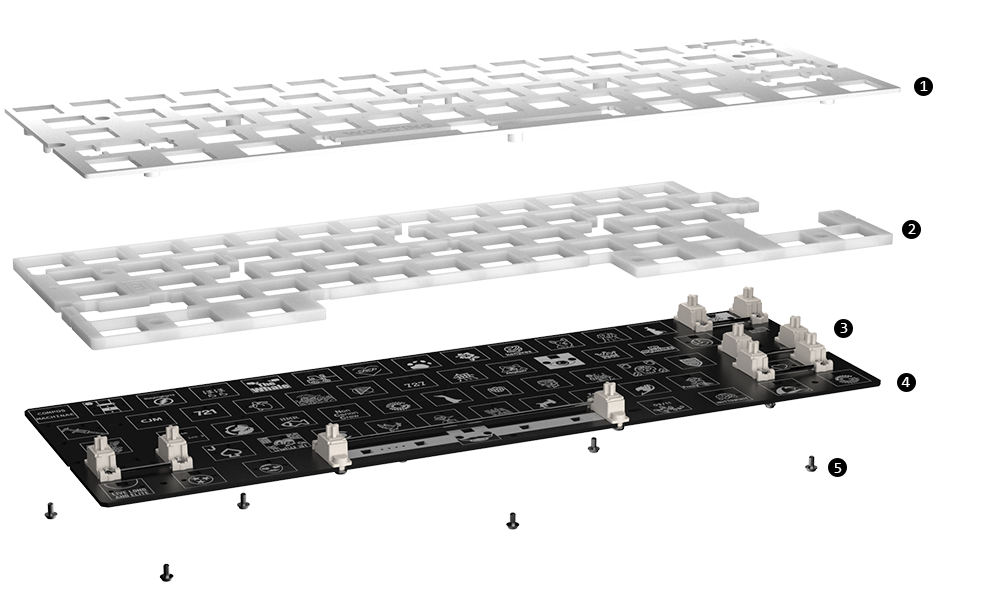

Module
components
1. PC plate
2. Silicone pad / Poron pad
3. Screw in stabilizers
4. PCBA
5. Screws
The difference between
60HE+ module vs Wooting 60HE
Polycarbon (PC) plate
Screw-in stabilizers
EPDM foam for aluminium cases
Silicone and Poron foam sandwich pad
Silicone stand-off protection rings
Cable
No keycaps
No case
No strap
No switches
Steel plate
Plate mounted stabilizers
EPDM foam
Poron foam sandwich pad
No protection rings
Cable
ANSI PBT keycaps
ABS case
Wooting strap
Lekker Switches Linear60

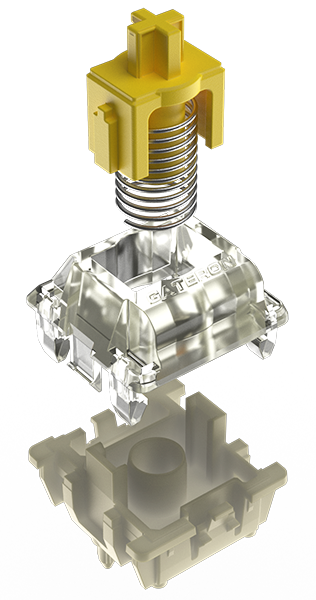

The Lekker switch
A contactless magnet switch powered by Hall effect sensors. No metal leaf, pins, optics or other sensitive hardware that suffers from wear, tear, and particles. This survives the test of times and lasts millions of presses.
40cN
Key start force
60cN
Key end force
L60
L45
30cN
Key start force
45cN
Key end force
100 000 000
Clicks lifespan
0.1 - 4.0 mm
Actuation range
0.1 - 4.0 mm
Reset range
Linear
Feeling
Silent
No audible feedback
MX (cross)
Keycap stem

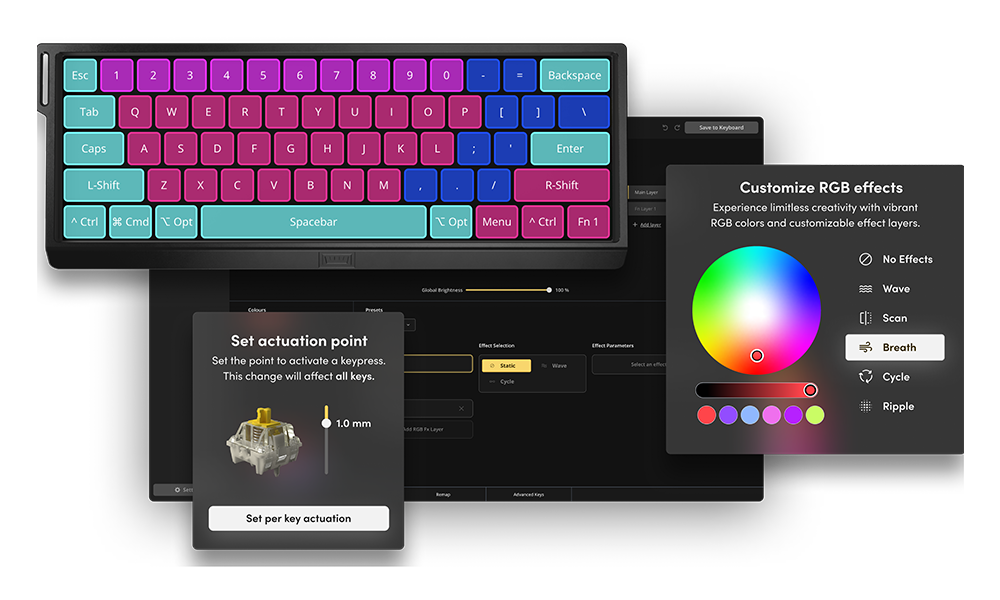

Wootility
Easy to use software
You won’t need to watch youtube tutorials to get started or break a nerve with the simplest task. The Wootility is simple to use and easy to master.
All stored on the module
You don’t need software to run in the background. All the features work straight from the keyboard and all your settings are saved on the 8MB on-board memory.
Wootility web
No matter if you use Windows, MacOS, or Linux. We support all operating systems.

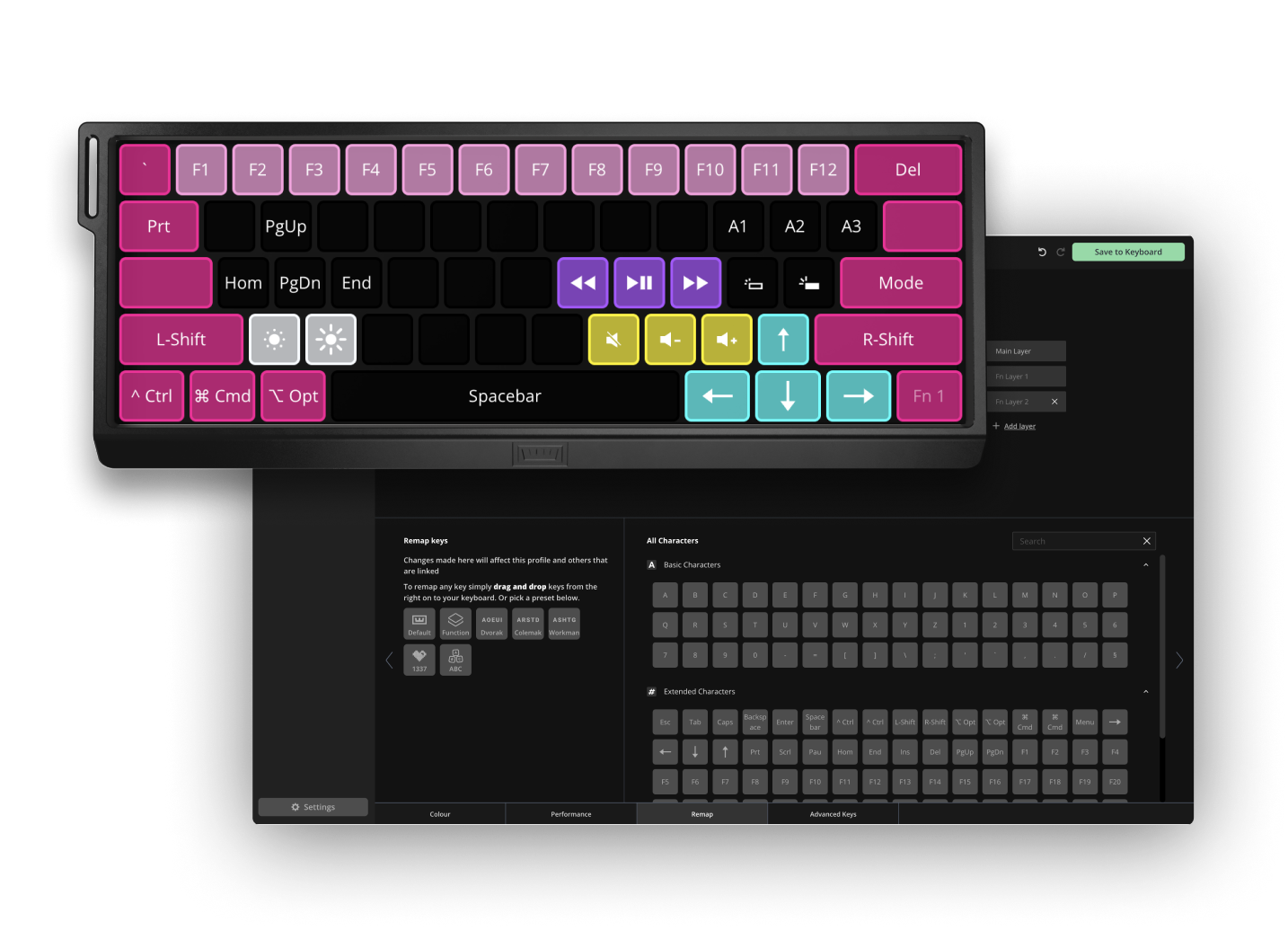

Remap any key
You can map each key however you see fit over multiple layers and profiles. You won't be forced to learn silly function layers with non-descriptive icons or live with mediocre arrow key solutions. You have full control over your productive workflow with remap.
Mod-tap
Single press for arrow key, hold for modifier key. This is the power of mod-tap. Differentiate between a short and long press to uncover peak productivity.
Try Wootility web
Recap the facts
Adjustable actuation point
Adjust each key’s actuation point to your preference.
Rapid trigger
Dynamically changes actuation and deactivation to eliminate latency.
Low latency
Processed within 1ms, every 1ms.
Remapping
Map the keys to whatever you want.
.svg)
Spill resistant
Protected with a water resistant coating for those accidental spills.
PC switch plate
Pre-Installed with a PC switch plate for a softer feel and vibrant sound.
Screw in stabilizers
Pre-installed with screw-in stabilizers to eliminate rattle.
4 Year warranty
Customize your 60HE+ Module without any worries - your warranty remains intact for 4 years. Just be a bit careful to not damage it.
Specifications
Technical Specifications
Switches
None
Keycaps
None
Case
None
Stabilizers
Screw-in stabilizer
Switch plate
White polycarbonate (PC) plate
Sandwich pad
Silicone or Poron foam
PCBA
Wooting 60HE+
Cable
1.8 meter USB A to C cable
Dimensions
28.5 x 9.5 x 0.6 cm / 11.22 x 3.74 x 0.024 inch (till plate)
Weight
182 grams
Compatibility
Switches
Lekker switches, Gateron KS-20 switches
Stabilizers
Screw-in stabilizer, Plate mounted stabilizer
Case
Tray mount
What is inside the box
1x Wooting 60HE+ Module
1x Poron Sandwich Pad
1x EPDM dampening foam
1x USB cable A to C
10x Silicone stand-off protection sticker
7x PH1 M2 White Screws
1x EVA foam lid as temporary case
