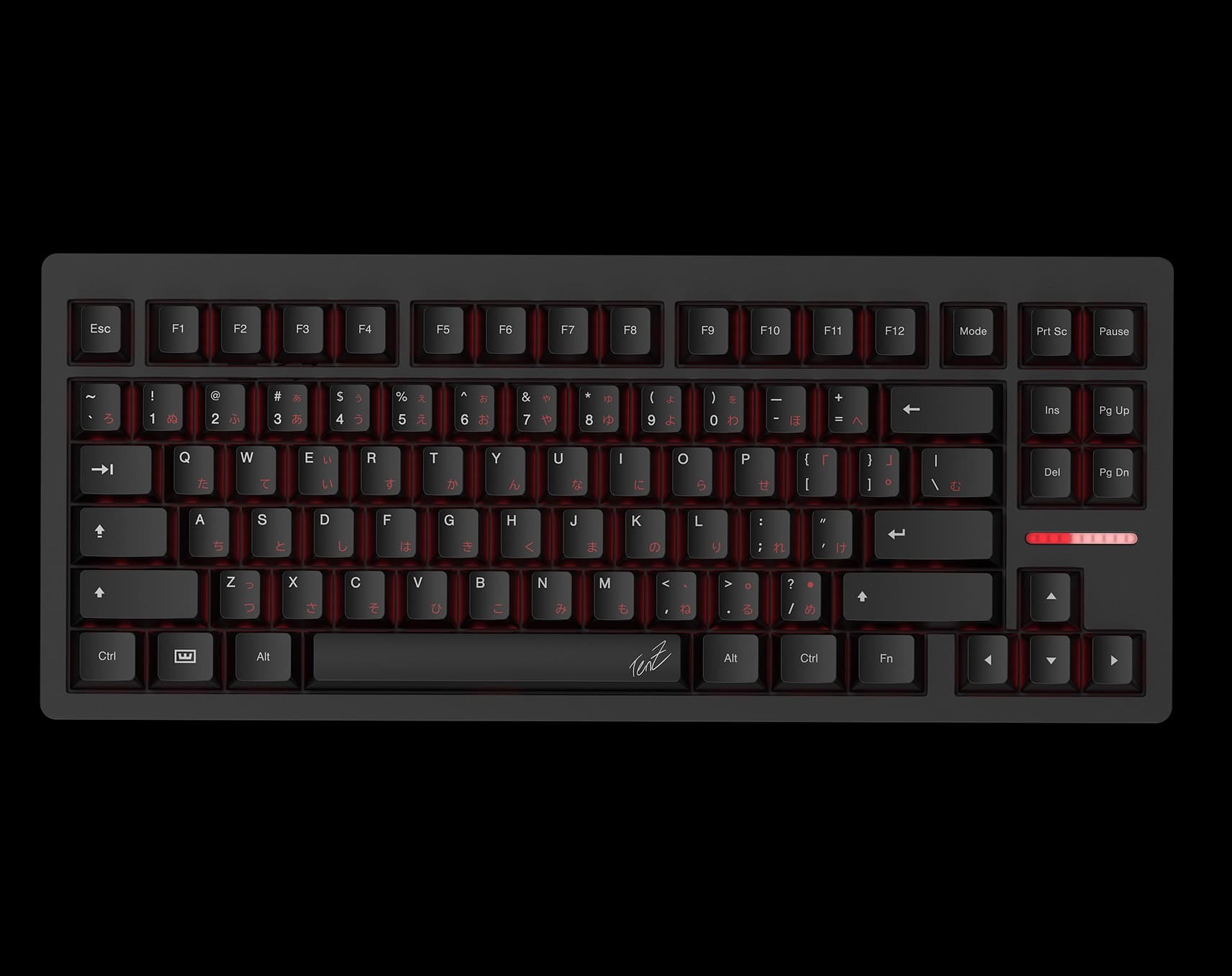

Wooting 80HE TenZ Takeover
Last updated: 14/05/2026
Introduction
This guide will help you get started with your brand new Wooting 80HE TenZ Takeover. Make sure you read through it without skipping too many steps. You'll be thankful you did so afterwards.
First of all, if you haven't already, join our Discord community! Glory is only as sweet as the people that are there to witness it. Share your experience, enjoyment, and learn from others that also got a Wooting 80HE TenZ Takeover.
You are hereby invited to join the Wooting Discord server!
And if you're digging your set-up, or built a cool custom Wooting, don't be shy and tweet us a sweet picture at @WootingKB.

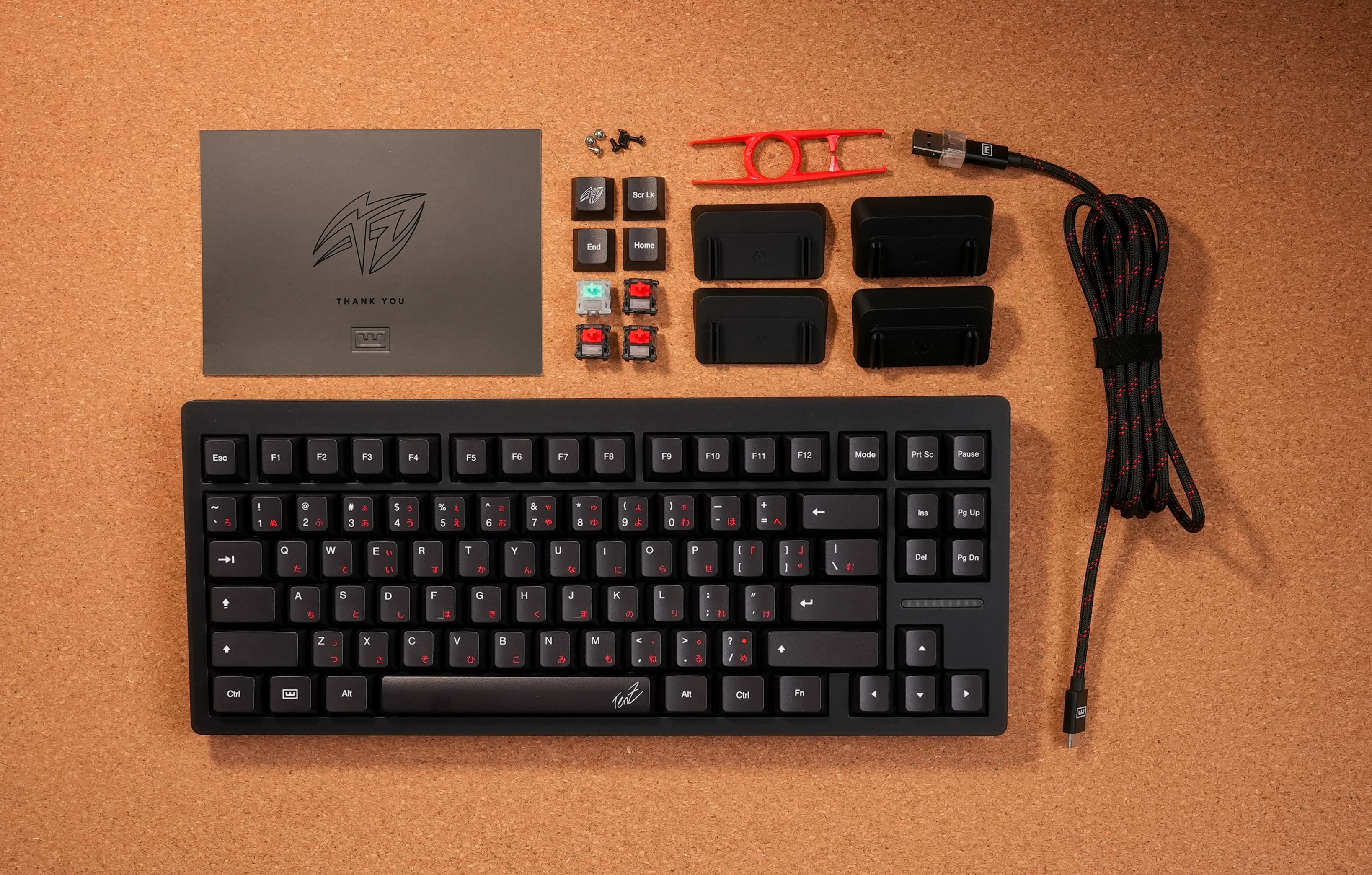

What's inside the box?
Let's first double-check if you've received a complete Wooting 80HE TenZ Takeover package.
- 1x Wooting 80HE TenZ Takeover (ANSI)
- 1x Keycap and Switch puller
- 3x Spare Lekker Tikken TenZ Switches
- 1x Spare Lekker Tikken Medium Switch
- 1x USB-C to USB-C 2.0 cable (2m / 6.6ft)
- 1x Dongle USB-C (♀) to USB-A (♂)
- 7x Spare PCBA screws (M2 x 4mm)
- 2x Spare silicone feet 2.8°
- 2x Spare silicone feet 6°
- 2x Spare silicone feet 10°
- 1x Postcard
Pulling Keycaps
If you've messed up your keycap placement, need to pull out the PCBA, or you want to install a brand new set of keycaps, it's time to master the art of keycap pulling.
Your 80HE TenZ Takeover came with a special 'keycap & switch puller', a tool that functions both as a keycap- and switch puller. Make sure to use the right side of the tool (the side that says 'keycap) and follow the instructions below.
01

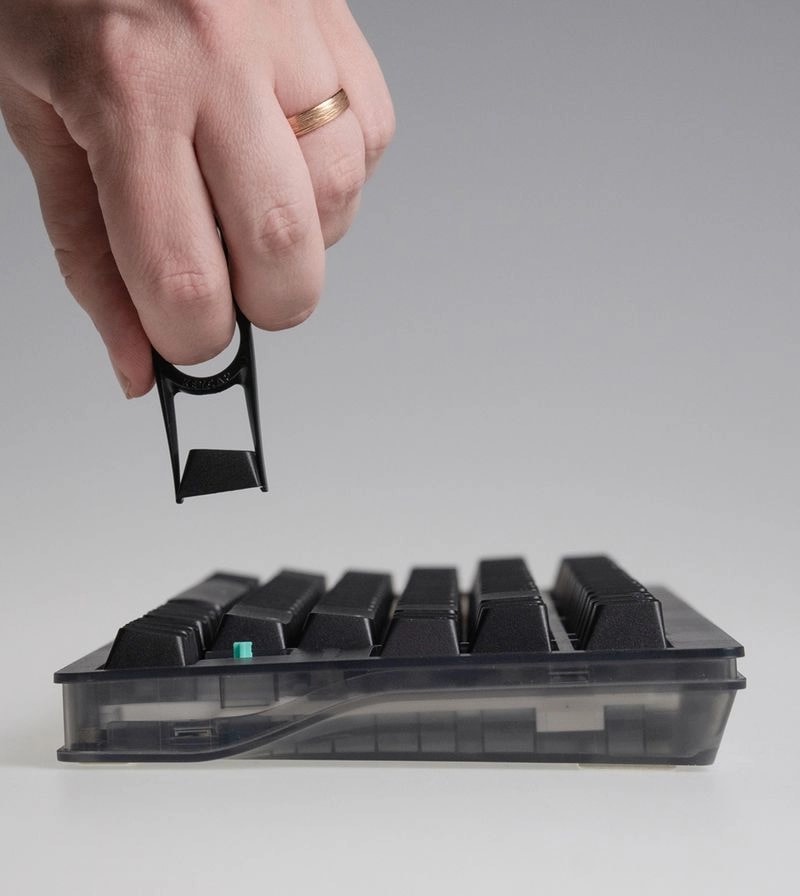

Position the keycap puller
Align the puller over the keycap and push down. Make sure it *clicks* on both sides.
02
Pull the keycap straight up
Pull with one hand straight up. With your other hand hold down the keyboard.
Pulling Switches
Did you get new switches? Grab the 'keycap & switch puller' that came with your keyboard. Don't be a fool, use the side of the tool that says 'switch'.
01

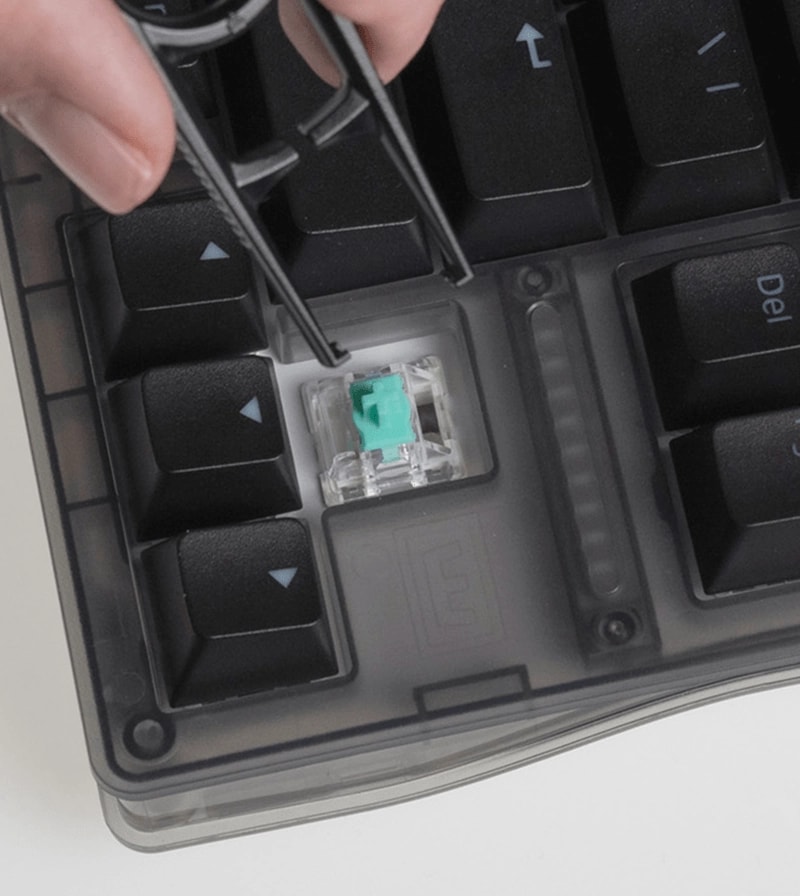

Grip the switch tabs
Carefully grip the north (top) and south (bottom) sides of the switch.
02
Squeeze and pull the switch
Gently squeeze and wiggle to detach both sides. Then pull to release from socket.
键盘模式与快捷键
您已经得到了最新的Wooting 80HE TenZ联名合作版，准备开始上手了。但在此之前，您可能会想了解键盘的默认按键映射和快捷功能。我们为您准备好了。

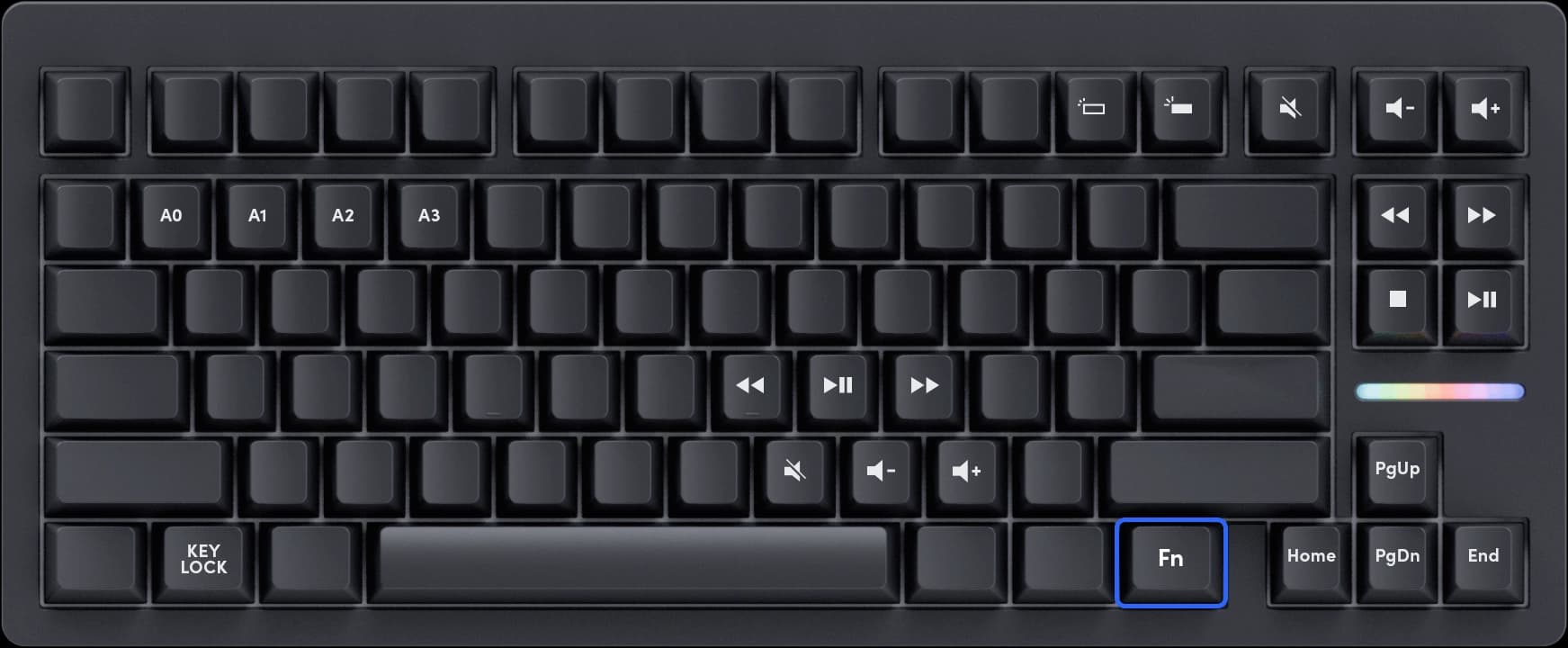

开箱即用，您的Wooting 80HE TenZ联名合作版默认附带2个额外功能层，可通过Fn1和Fn2键切换使用。

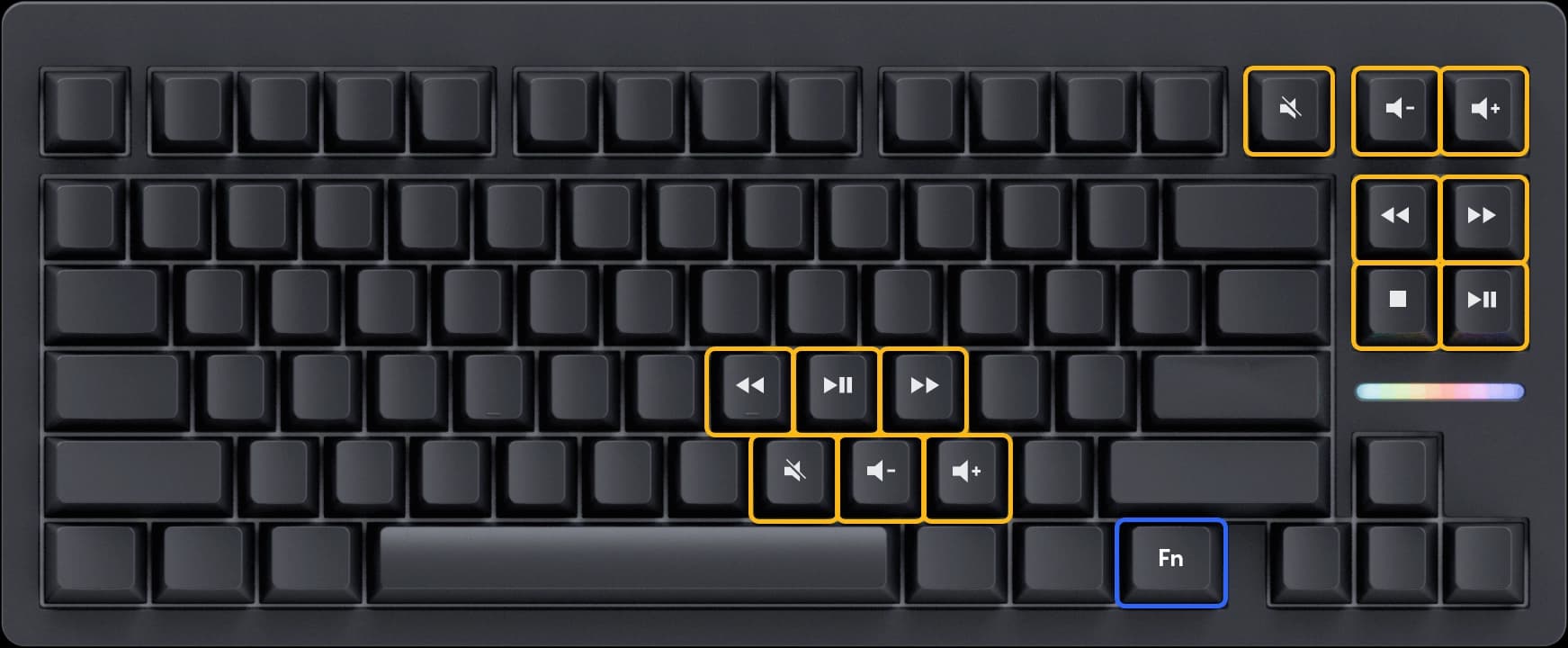

下面是默认映射键位，但您可以在Wootility中自由调整任何功能。由于默认功能均未印在键帽上，因此在自定义时也不会造成混淆。
您的Wooting 80HE TenZ联名合作版板载预装了两组默认配置，一个是打字配置，一个是游戏配置，具备更快的触发点和Rapid Trigger（RT功能）。

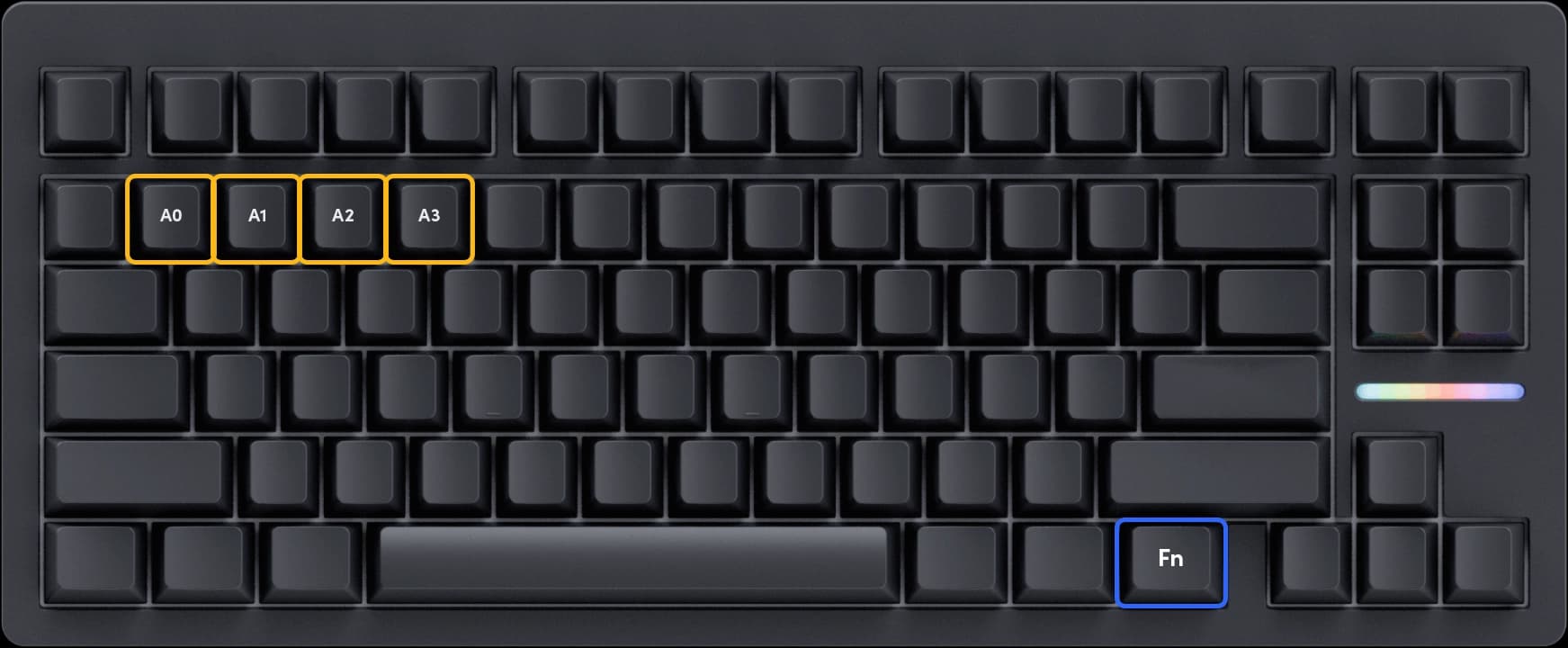

您最多可以在键盘上保存4组配置，并可随时切换使用。
按住Fn然后按下1、2、3或4
Wootility
Wootility是用于配置您键盘的软件。我们提供两个版本的Wootility，轻量级的网页版和一个可下载的桌面应用程序。无论你选择哪个版本，配置完键盘后都无需运行Wootility。
我们始终在不断优化固件和软件。确保通过更新键盘以体验最新、最完善的功能。
前往https://wootility.io并连接您的键盘。然后：
- 如有可用的固件更新，您将自动收到通知。您也可以前往设置→更新→我的设备，将鼠标悬停在您的设备上并开始更新。
- 更新时出现问题？这篇内容或许能帮到您：更新或恢复期间出错。
- 如需更新软件，请前往设置→更新并点击“检查更新”
